- I/O Connection : M12, 4/3-poles, A-coded
- Number of Ports : 4
- I/O Wiring Configuration : single I/O per port
- Control Cable Interface : 1 1/8", 12-poles
- Housing Material : Plastic, TPU
- Housing Color : Yellow
- Protection Degree / IP Rating** : IP67
- Potted : Yes
- Dimensions (W x H x D) : ASB: 54mm x 25 mm x 82 mm | 1 1/8": Ø31 mm x 78,3 mm
- Ambient Temperature (Operation)* : -15 °C to 80 °C
- Pollution Degree : 3 acc. to EN 60664-1, VDE 0110-1
- Contact Base Material : CuZn
- Contact Bearer Material : PA / PUR
- O-Ring Material : FKM
- Fastening Torque (I/O Connection) : M12: 0.5 Nm
7 Pc(s) In Stock
SKU
ASBV 4 4-3-256-RS120M

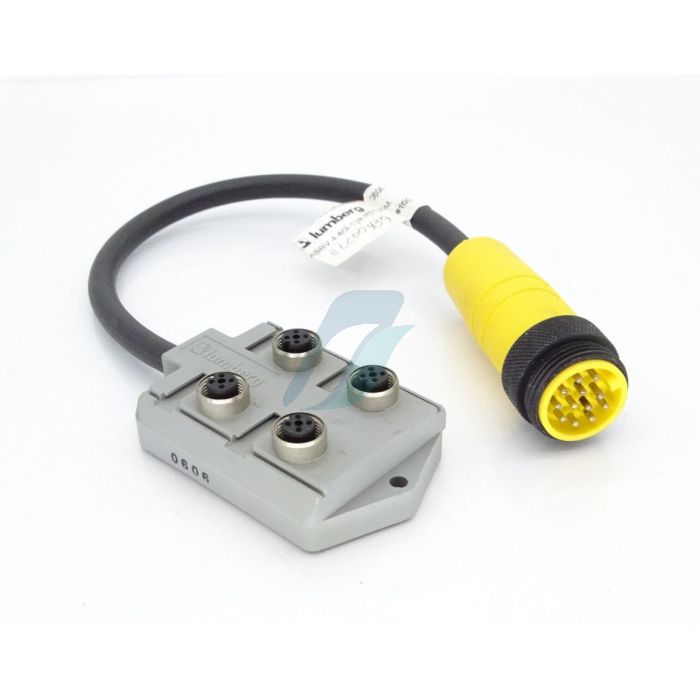

Lumberg Automation ASB, 4 ports, 4/3-poles, 1 1/8"
₹6,500.00
For 1 Pc(s)
- ASBV 4 4-3-256-RS120M
- 85366990
- Pc(s)
- Belden
- Yes
- GST 18%
Product Specification
