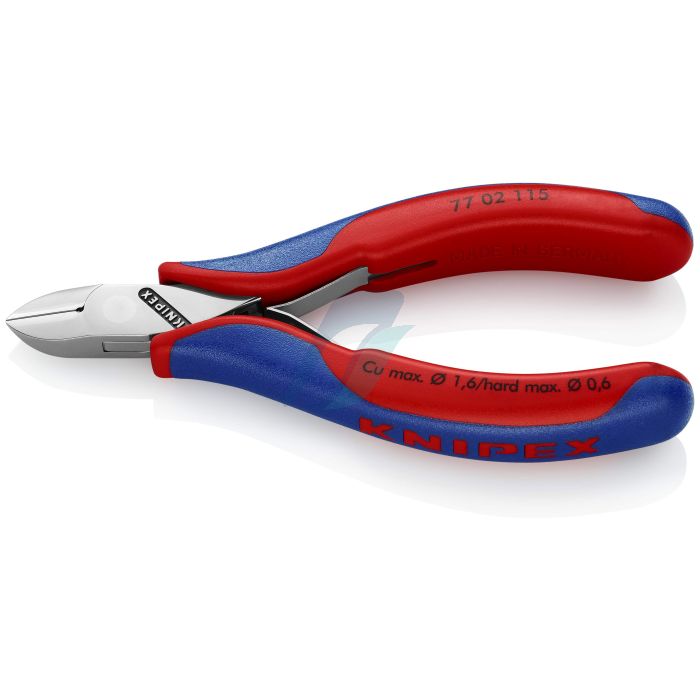

Knipex Electronics Diagonal Cutter with multi-component grips 115 mm

Special Price ₹4,792.00 Regular Price ₹8,700.00

Other Available Option

Product Overview

SKU 77 02 115
UOM Pc(s)
Manufacturer Knipex
Handles Multi-Component Grips
HSN Code 82032000
Tax GST 18%
Net weight in grams 76
ROHS Compliance No
REACH Certification No
Country of Origin Germany

Product Specification

EAN : 4003773039334
Handles : with multi-component grips
Head : mirror polished
Bevel : cutting edges with small bevel
Cutting capacities hard wire (diameter) : 0.6 mm
Cutting capacities medium hard wire (diameter) : 1.2 mm
Cutting capacities soft wire (diameter) : 0.3 - 1.6 mm
Head width : 11 mm
Jaw Length : 14 mm
Jaw Thickness : 7.5 mm
Joint Design : box joint
DIN : DIN ISO 9654
Length : 115 mm

Product Details

> For fine cutting work, e.g. in electronics and fine mechanics

> Load-optimised for a more direct feel when working

> Sturdy, zero-backlash box joint

> Low-friction double spring for gentle and even opening

> The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools

> Cutters additionally laser hardened, cutter hardness at least 60 HRC

> Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger

Datasheet

Knipex_7702115_en.pdf
