- Crimping force : max. 15 kN
- Crimping range : 0,14 - 50 mm²
- Crimping cycle : < 1.5 s (based on connection material)
- Number of crimps : approx. 300 for 10 mm² Cu DIN 46234 / per battery charge
- Battery voltage : 10,8 V
- Battery capacity : 1,5 Ah, Li-Ion
- Battery charging time : ca. 40 min.
- Ambient temperature : -10 °C bis + 40 °C
Out of stock
SKU
EK50ML

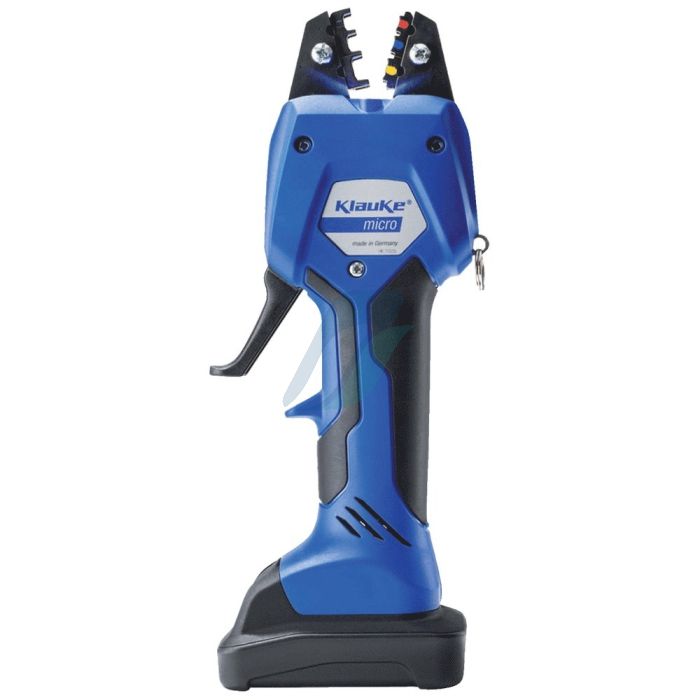

Klauke Electromechanical Crimping Tool 0.14 - 50 mm²
₹80,100.00
For 1 Pc(s)
- EK50ML
- 84672920
- Klauke
- Pc(s)
- 960
- No
- GST 18%
- Germany
Product Details
- The Klauke micro with intuitive PowerSense function combines the benefits of manual crimping tools with the convenience of battery-powered hydraulic crimping tools
- Excellent crimping results with minimum effort
- Simple and safe: one-button operating concept for controlling all tool functions
- Electronic control with locking function monitors full closing of the dies
- Simple and safe: Automatic retraction after operation completed
- Manual retract as required
- Motor stall protection
- Ergonomic 2C housing in the Klauke "In-line Design"
- Fastening eye for use with balancer or as fall protection in field applications
- Very low weight and high speed for maximum efficiency
- Powerful drive technology for fatigue proof operations
- Powerful 10.8 V Li-Ion battery with charge status display
- LED for work area illumination
- Maintenance display via LED
- suitable for 50-series interchangeable crimping dies
Product Specification
