- Characteristic of Connection : Solder
- Number Of Contacts Signal : 6
- Insert : Socket
- Color Contact Insert : White
- Material Insulating Body : PA 6, PBT
- Contact-Ø Signal : 2 mm
- Nominal?Current Signal : 20 A
- Nominal Voltage At Degree Of Pollution 3 Signal : 300 V~
- Test Voltage Signal : 2500 V~
- Insulation Resistance Signal : > 10^10Ω
- Max. Contact Resistance Signal : 3 mOhm
- Max. Contact Resistance Power : 3 mOhm
- Temperature Range : -40°C to +125°C
- Degree of Protection : 3
- Flammability : V-0 (UL 94)
19 Pc(s) In Stock
SKU
7001906104

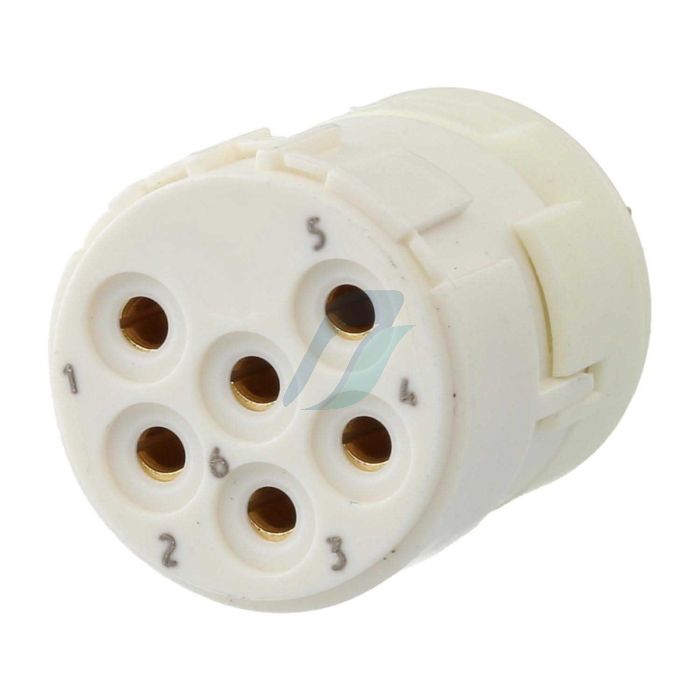

Hummel 6 Pin M23 Female Insert
₹1,140.00
Other Available Option
- 7001906104
- 85366990
- Hummel
- Pc(s)
- 1
- 2.46
- Yes
- 6
- Female
- Solder
- GST 18%
- Germany
Product Specification
Datasheet
