- Ambient temperature :-25℃...80℃
- IP class : IP68
- Rated current : 250V
- Number of potentials : 4
- Insulation resistance : ≥ 100 MΩ
- Error-proof coding : A-Code
- Overvoltage level :Ⅱ
- Pollution level : 3
- Connection method : Screw connection
- Insertion and pullout cycle : ≥ 103
- Torque : 0.4 Nm
- Flammability rating ,in line with UL94 : V3
- Contact material : CuZn
- Material contact surface : Au
- Contact carrier material : PA
- Coil material : Zinc alloy, nickel plated
Out of stock
SKU
SD-M12A-04P-MM-SH8A50

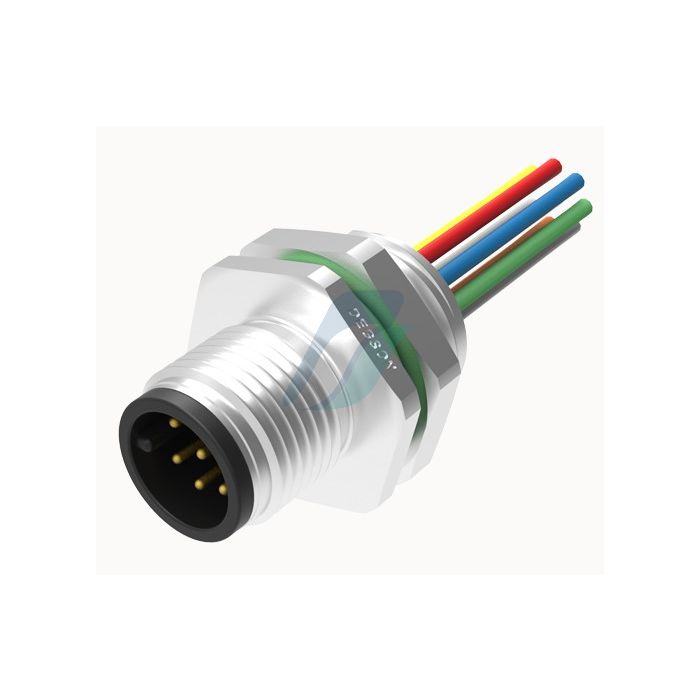

4 Pin M12 Male Bulkhead Cable Type
₹170.00
For 1 Pc(s)
- SD-M12A-04P-MM-SH8A50
- 85366990
- Degson
- Pc(s)
- 1
- Yes
- 4
- Male
- Cable Type
- GST 18%
- China
Product Specification
Datasheet
