- Ambient temperature : 40℃...105℃
- IP Class : IP 67
- Assembled cable outer diameter: 4.5-6.0mm
- Assembled conductor cross section: 0.25~0.34 mm², 24~22 AWG
- Rated current : 2A, 30V
- Number of potentials : 8
- Insulation resistance : ≥ 100 MΩ
- Error-proof coding : A-Code
- Overvoltage level : Ⅱ
- Pollution level :3
- Connection method : Screw connection
- Torque : 0.4 Nm
- Flammability rating ,in line with UL94 : V0
- Contact material : CuZn
- Material contact surface : Au
- Contact carrier material : PA
20 Pc(s) In Stock
SKU
PBSH-M12A-08P-MM-SR7001

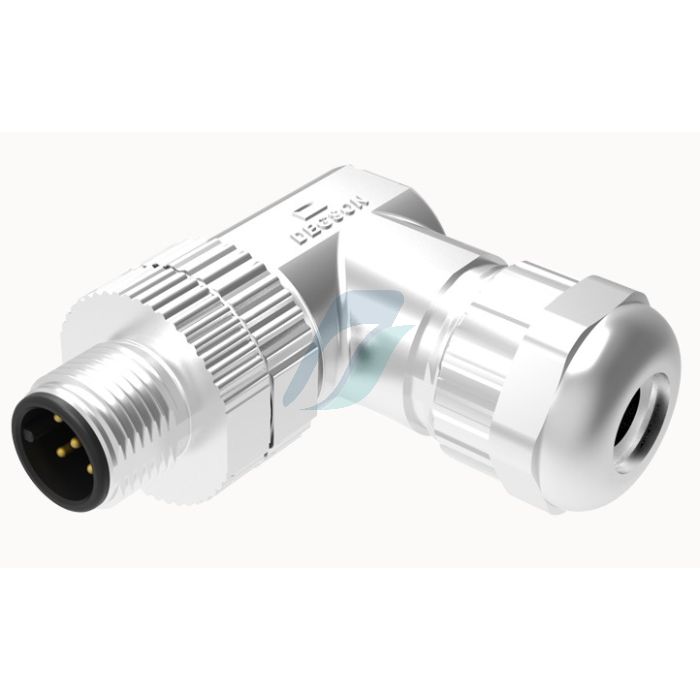

8 Pin M12 Male Cable Type Right Angle
₹870.00
For 1 Pc(s)
- PBSH-M12A-08P-MM-SR7001
- 85366990
- Degson
- Pc(s)
- 1
- Yes
- 8
- Male
- Cable Type
- GST 18%
- China
Product Specification
