- Ambient temperature : -40℃...105℃
- IP Class : IP 67
- Assembled cable outer diameter : 4.5-6.0mm
- Assembled conductor cross section : 0.25~0.52 mm², 24~20 AWG
- Rated current : 4A, 60V
- Number of potentials : 5
- Insulation resistance : ≥ 100 MΩ
- Error-proof coding : A-Code
- Overvoltage level : Ⅱ
- Pollution level : 3
- Connection method : Screw connection
- Torque : 0.4 Nm
- Flammability rating ,in line with UL94 : V0
- Contact material : CuZn
- Material contact surface : Au
- Contact carrier material : PA
45 Pc(s) In Stock
SKU
PBSH-M12A-05P-FF-SL7001

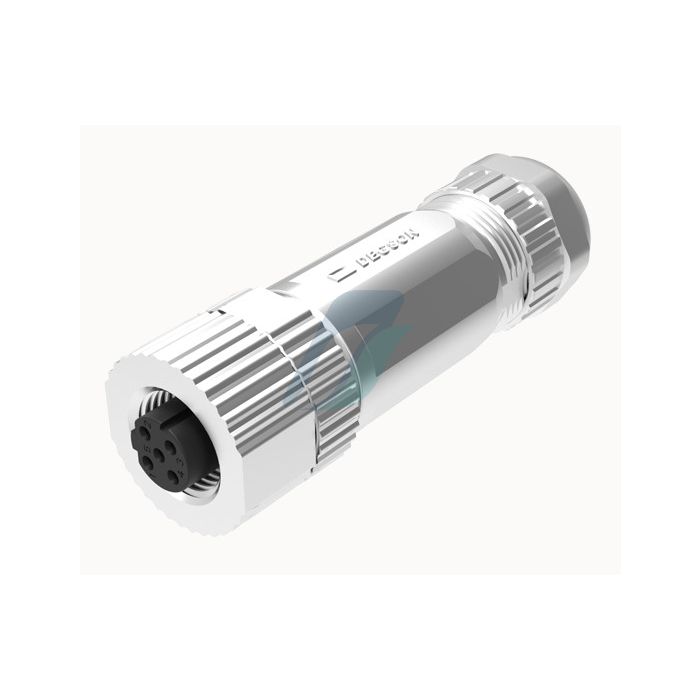

5 Pin M12 Female Cable Type
₹690.00
For 1 Pc(s)
- PBSH-M12A-05P-FF-SL7001
- 85366990
- Degson
- Pc(s)
- Yes
- 5
- Female
- Cable Type
- GST 18%
- China
Product Specification
