- Ambient temperature : -40℃...105℃
- IP class : IP69
- Rated current : 60V
- Number of potentials : 4
- Insulation resistance : ≥ 100 MΩ
- Error-proof coding : A-Code
- Overvoltage level :Ⅱ
- Pollution level : 3
- Connection method : Screw connection
- Insertion and pullout cycle : ≥ 103
- Torque : 0.3 Nm ... 0.4 Nm
- Flammability rating ,in line with UL94 : V3
- Contact material : CuZn
- Material contact surface : Au
- Contact carrier material : PA
- Coil material : Zinc alloy, nickel plated
161 Pc(s) In Stock
SKU
PB-M8A-04P-FF-SL7001

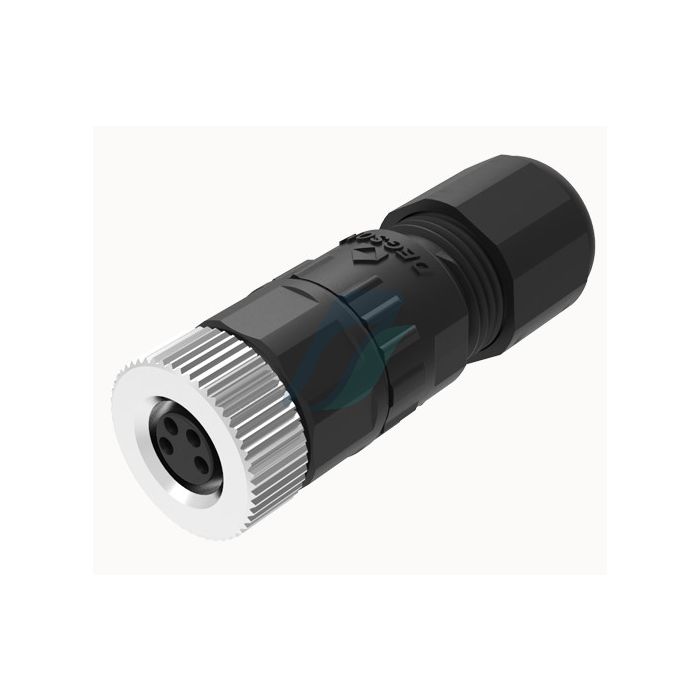

Degson 4 Pin M8 Female cable type
₹280.00
- PB-M8A-04P-FF-SL7001
- 85366990
- Degson
- Pc(s)
- 1
- Yes
- 4
- Female
- Cable Type
- GST 18%
- China
Product Specification
Datasheet
