- Ambient temperature : -40℃...85℃
- IP class : IP67
- Rated current : 60V
- Number of potentials : 4
- Insulation resistance : ≥ 100 MΩ
- Error-proof coding : A-Code
- Overvoltage level : Ⅱ
- Pollution level : 3
- Connection method : Screw connection
- Insertion and pullout cycle : ≥ 100
- Torque : 0.4 Nm
- Flammability rating ,in line with UL94 : V0
- Contact material : CuZn
- Material contact surface : Au
- Contact carrier material : PA
- Sealing material : Silicon
Out of stock
SKU
PB-M8A-03P-FF-SL7001

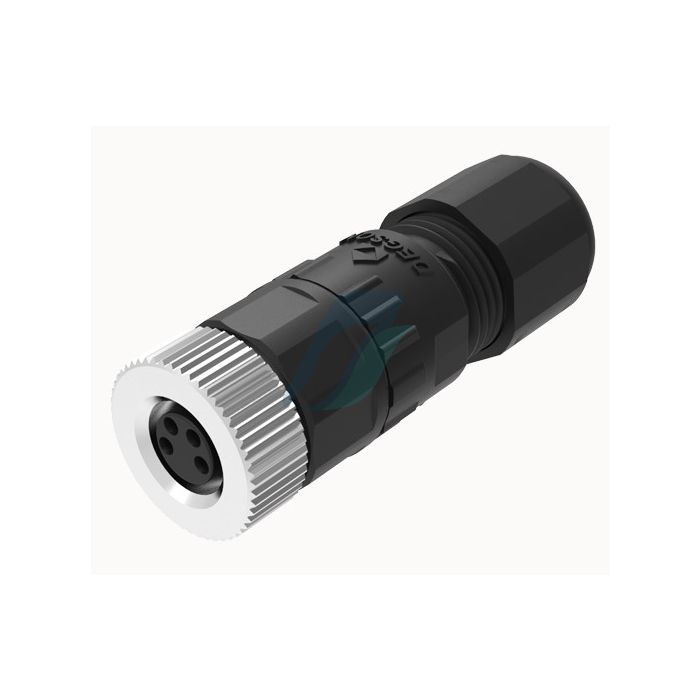

Degson 3P M8 Female [PB-M8A-03P-FF-SL7001-00Z(H)]
₹265.00
For 1 Pc(s)
- PB-M8A-03P-FF-SL7001
- 85366990
- Degson
- Pc(s)
- No
- Female
- GST 18%
Product Specification
