500 Pc(s) In Stock
SKU
PB-M12A-05P-MM-SL7001

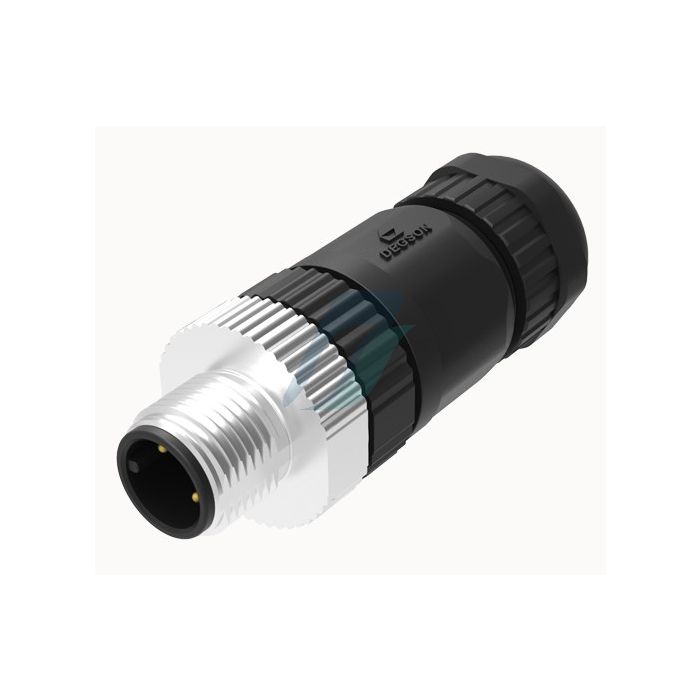

Degson 5 Pin M12 Male cable type

₹200.00 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • PB-M12A-05P-MM-SL7001
  • 85366990
  • Degson
  • Pc(s)
  • 1
  • Yes
  • 5
  • Male
  • Cable Type
  • GST 18%
  • China
Product Specification
  • Ambient temperature : -40℃...105℃
  • IP class : IP69
  • Rated current : 60V
  • Number of potentials : 5
  • Insulation resistance : ≥ 100 MΩ
  • Error-proof coding : A-Code
  • Overvoltage level : Ⅱ
  • Pollution level : 3
  • Connection method : Screw connection
  • Insertion and pullout cycle : ≥ 103
  • Torque : 0.4 Nm
  • Flammability rating ,in line with UL94 : V3
  • Contact material : CuZn
  • Material contact surface : Au
  • Contact carrier material : PA
  • Coil material : Zinc alloy, nickel plated
