- Ambient temperature : -40℃...105℃
- IP class : IP68
- Rated current : 60V
- Number of potentials : 5
- Insulation resistance : ≥ 100 MΩ
- Error-proof coding : A-Code
- Overvoltage level :Ⅱ
- Pollution level : 3
- Connection method : Screw connection
- Insertion and pullout cycle : ≥ 102
- Torque : 0.4 Nm
- Flammability rating ,in line with UL94 : V2
- Contact material : CuZn
- Material contact surface : Au
- Contact carrier material : PA
- Coil material : Zinc alloy, nickel plated
278 Pc(s) In Stock
SKU
PB-M12A-05P-FF-SR7001

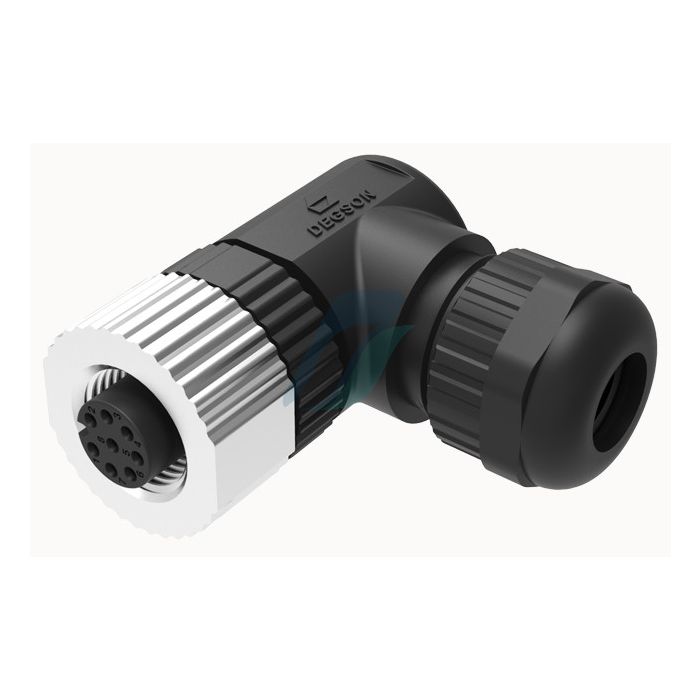

5 Pin M12 Female RT /A [PB-M12A-05P-FF-SR7001(H)]
₹240.00
For 1 Pc(s)
- PB-M12A-05P-FF-SR7001
- 85366990
- Degson
- Pc(s)
- 1
- Yes
- 5
- Female
- Cable Type
- GST 18%
- China
Product Specification
