- Process : Wave soldering/manual soldering
- Conductor cross section solid : 0.5~1.0mm²
- Conductor cross section flexible : 0.5~1.0mm²
- AWG : 24~18AWG
- Torque : 0.2N.m
- Strip length : 5mm
- Rated voltage (B) : 300V
- Rated current (B) : 10A
- screw thread : M2
- Pitch : 3.5mm
- Number of potentials : 3
- Contact material : Copper alloy
- Ambient temperature (operation) : -40℃~105℃(depending on derating curve)
445 Pc(s) In Stock
SKU
DG-350-3.5-03

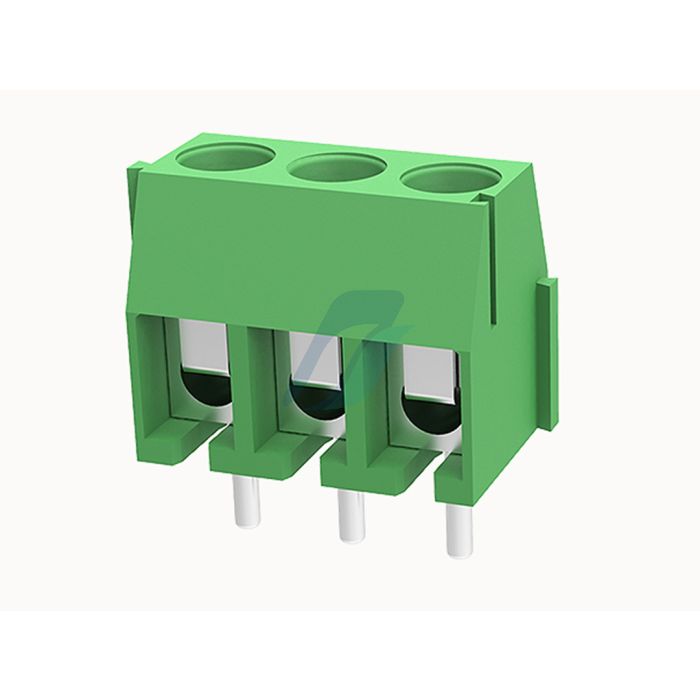

Degson DG-350-3.5-03 3 Pin PCB terminal blocks
₹7.40
- DG-350-3.5-03
- 85366990
- Pc(s)
- Degson
- 3
- Yes
- GST 18%
- China
Product Specification
