- Process : Wave soldering/manual soldering
- Rated voltage (B) : 300V
- Rated voltage (D) : 300V
- Rated current (B) : 15A
- Rated current (D) : 10A
- Rated current : 320V / 20A
- Type of installation : PCB welding
- Pin arrangement : Single row in a straight line
- Pitch : 5.08mm
- Number of rows : 1
- Environmental items : Compliant with REACH/RoHS
- Contact material : copper
- Contact zone metal surface : tin-plated
- Insulation Materials : PA66
- Flammability rating : UL94V-0
235 Pc(s) In Stock
SKU
2EDGR-5.08-05P-14-100A(H)

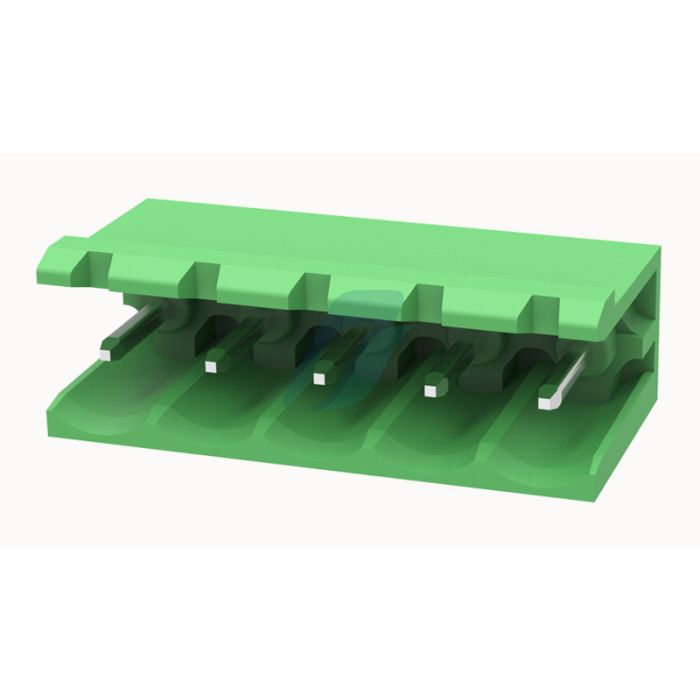

Degson 2EDGR-5.08-05P Pluggable Terminal Blocks 5 Pin PCB Socket
₹8.90
For 1 Pc(s)
- 2EDGR-5.08-05P-14-100A(H)
- 85366990
- Pc(s)
- Degson
- 5
- PCB Right Angle
- Female
- Yes
- GST 18%
- China
Product Specification
