398 Pc(s) In Stock
SKU
2EDGKR-5.08-04P-14-00A(H)

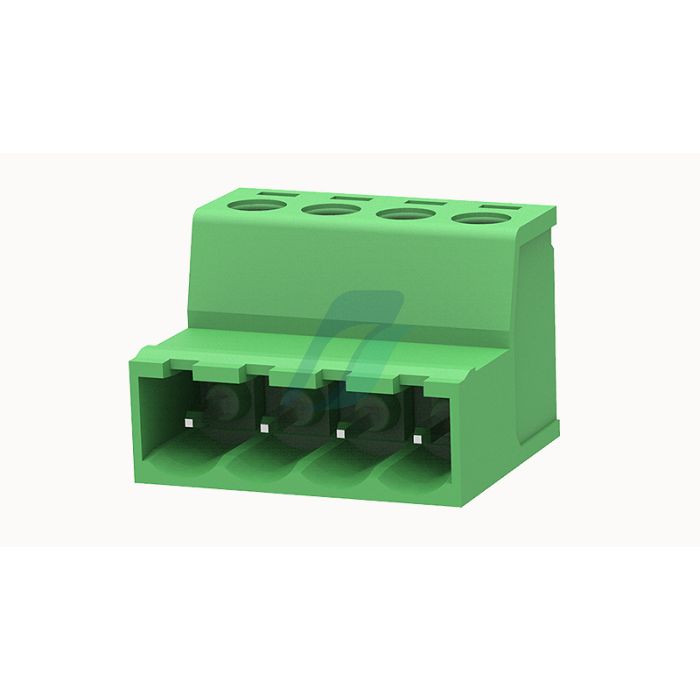

Degson 2EDGKR-5.08-04 Pluggable Terminal Blocks 4 Pin PCB Plug

₹34.40 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 2EDGKR-5.08-04P-14-00A(H)
  • 85366990
  • Pc(s)
  • Degson
  • 4
  • Male
  • Yes
  • GST 18%
  • China
Product Specification
  • Conductor cross section solid : 0.2~2.5mm²
  • AWG : 28~12AWG
  • Strip length : 7mm
  • Rated voltage (B) : 300V
  • Rated voltage (D) : 300V
  • 300V Rated current (B) : 15A
  • 15A Rated current (D) : 10A
  • Rated current : 320V / 20A
  • Pin arrangement : Single row in a straight line
  • Connection method : Screw connection
  • Screwdriver : Slotted screwdriver
  • Number of rows : 1
  • Environmental items : Compliant with REACH/RoHS
  • Contact material : Copper
  • Contact point metal surface : Tin-plated
  • Flammability rating : UL94V-0
