888 Pc(s) In Stock
SKU
2EDGKB-5.08-05P-14-1000A(H)

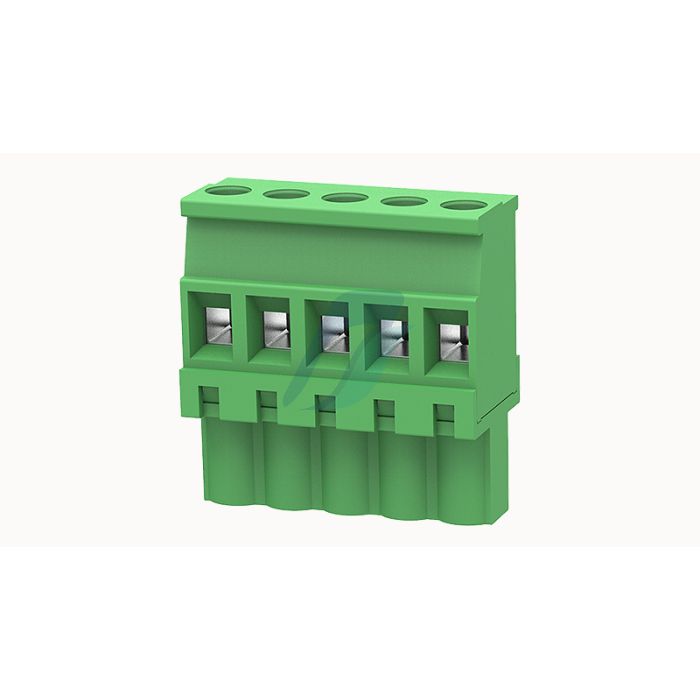

Degson 2EDGKB-5.08-05 Pluggable Terminal Blocks 5 Pin PCB Plug

₹37.90 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 2EDGKB-5.08-05P-14-1000A(H)
  • 85366990
  • Pc(s)
  • Degson
  • 5
  • Female
  • Yes
  • GST 18%
  • China
Product Specification
  • Connection method : Screw connection
  • AWG : 28~12AWG
  • Strip length : 7mm
  • Conductor cross section solid : 1.0~2.5mm²
  • Rated voltage (B) : 300V
  • Rated voltage (D) : 300V
  • Rated current (B) : 15A
  • Rated current (D) : 10A
  • Rated current : 320V, 18A
  • Pitch : 5mm
  • Number of rows : 1
  • Flammability rating : UL94V-0
  • Environmental items : Compliant with REACH/RoHS
  • Contact material : Copper alloy
  • Ambient temperature : -40℃~105℃
