- Conductor cross section solid : 1.0~2.5mm²
- Conductor cross section flexible : 1.0~2.5mm²
- AWG : 28~12AWG
- Torque : 0.5N.m
- Strip length : 7mm
- Rated voltage (B) : 300V
- Rated voltage (D) : 300V
- Rated current (B) : 15A
- Rated current (D) : 10A
- Rated current : 400V/20A
- Rated current(III/2) : 400V
- Rated surge voltage(III/2) : 4KV
- Connection method : Screw connection
- Screwdriver : Slotted screwdriver
- screw thread : M3
- Pitch : 7.62mm
218 Pc(s) In Stock
SKU
2EDGK-7.62-08

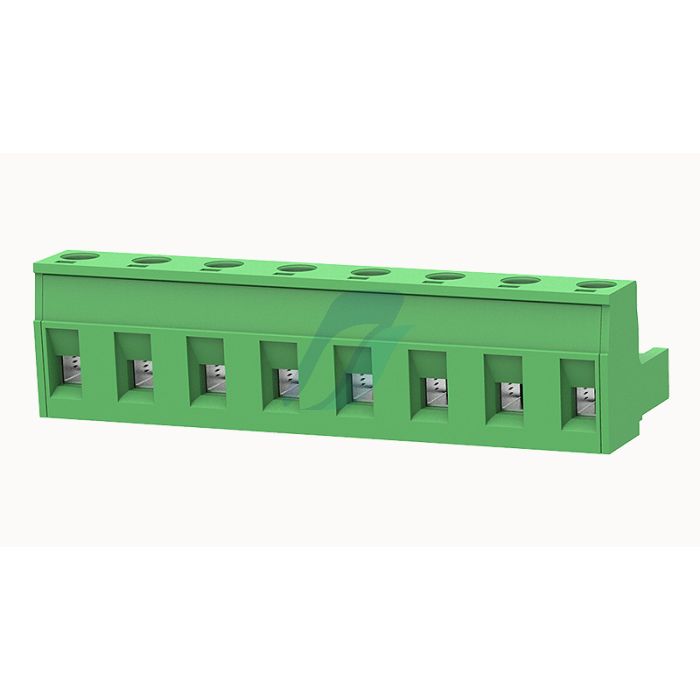

Degson 2EDGK-7.62-08 Pluggable Terminal Blocks 8 Pin PCB Plug
₹47.80
For 1 Pc(s)
- 2EDGK-7.62-08
- 85366990
- Pc(s)
- Degson
- 8
- Female
- Yes
- GST 18%
- China
Product Specification
