- Process : Wave soldering/manual soldering
- Rated voltage (B) : 300V
- Rated voltage (D) : 300V
- Rated current (B) : 8A
- Rated current (D) : 8A
- Rated current : 250V / 7A
- Rated current(II/2) : 250V
- Rated surge voltage(II/2) : 2.5KV
- Type of installation : PCB welding
- Pin arrangement : Single row in a straight line
- Pitch : 3.81mm
- Number of rows : 1
- Environmental items : Compliant with REACH/RoHS
- Contact material : Copper alloy
- Contact point metal surface : tin-plated
- Insulating material group : Ⅰ
Out of stock
SKU
15EDGRC-3.81-04

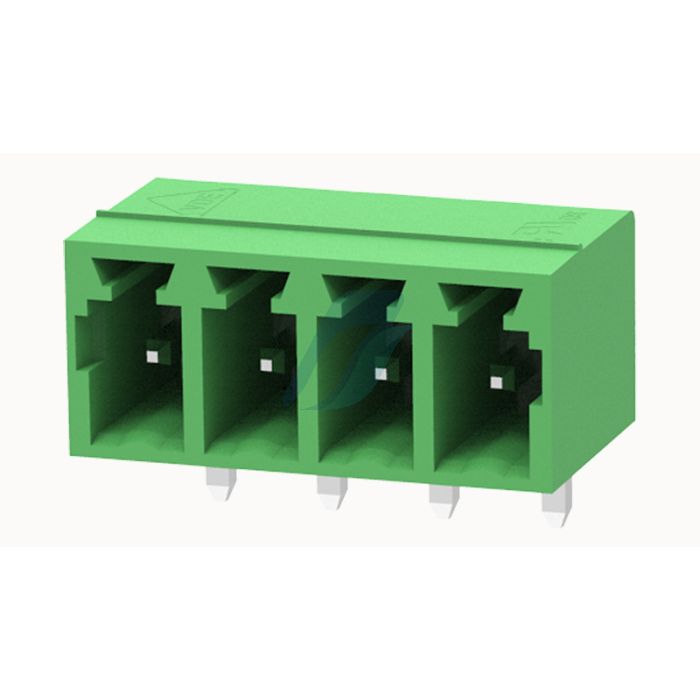

Degson 15EDGRC-3.81-04 Pluggable Terminal Blocks 4 Pin PCB Socket
₹7.80
For 1 Pc(s)
- 15EDGRC-3.81-04
- 85366990
- Pc(s)
- Degson
- 4
- Male
- Yes
- GST 18%
- China
Product Specification
