Out of stock
SKU
15EDGKD-3.81-02P

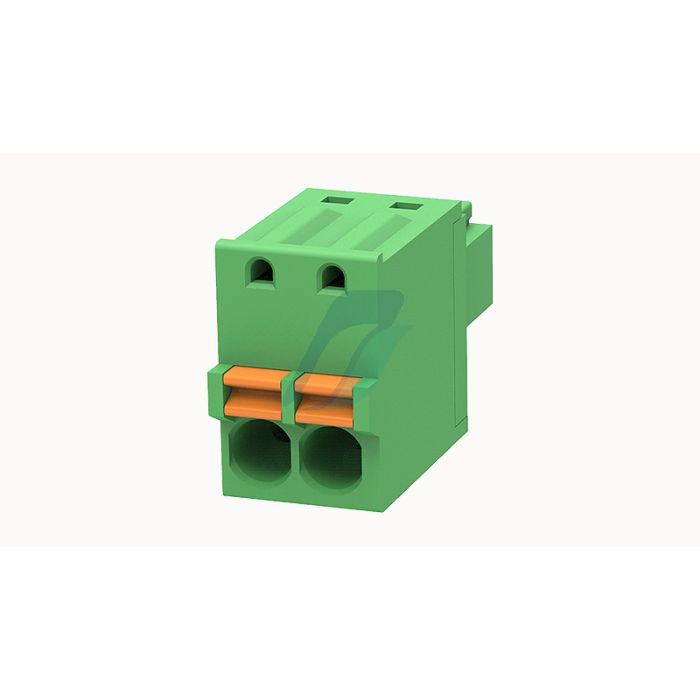

Degson 15EDGKD-3.81-02P Pluggable Terminal Blocks 2 Pin PCB Plug

₹15.30 For 1 Pc(s)
  • 15EDGKD-3.81-02P
  • 85366990
  • Pc(s)
  • Degson
  • 2
  • Female
  • Yes
  • GST 18%
  • China
Product Specification
  • Conductor cross section solid : 0.2~1.5mm²
  • Conductor cross section flexible : 0.2~1.5mm²
  • AWG : 28~16AWG
  • Torque : 0.4N.m
  • Strip length : 9mm
  • Rated voltage (B) : 300V
  • Rated voltage (C) : 300V
  • Rated voltage (D) : 300V
  • Rated current (B) : 8A
  • Rated current (D) : 8A
  • Rated current (C) : 8A
  • Rated current : 250V / 12A
  • Rated current(III/2) : 250V
  • Rated surge voltage(III/2) : 2.5KV
  • Connection method : Push-in spring connection
  • Pitch : 3.81mm
