- Conductor cross section solid : 0.2~0.5mm²
- Conductor cross section flexible : 0.2~0.5mm²
- AWG : 26~20AWG
- Strip length : 8mm
- Rated voltage (B) : 150V
- Rated voltage (C) : 150V
- Rated voltage (D) : 150V
- Rated current (B) : 4A
- Rated current (D) : 4A
- Rated current (C) : 4A
- Rated current : 250V / 5A
- Rated current(III/2) : 250V
- Rated surge voltage(III/2) : 2.5KV
- Connection method : Push-in spring connection
- Pitch : 2.5mm
- Number of rows : 1
1000 Pc(s) In Stock
SKU
15EDGKD-2.5-04P-14-00A(H)

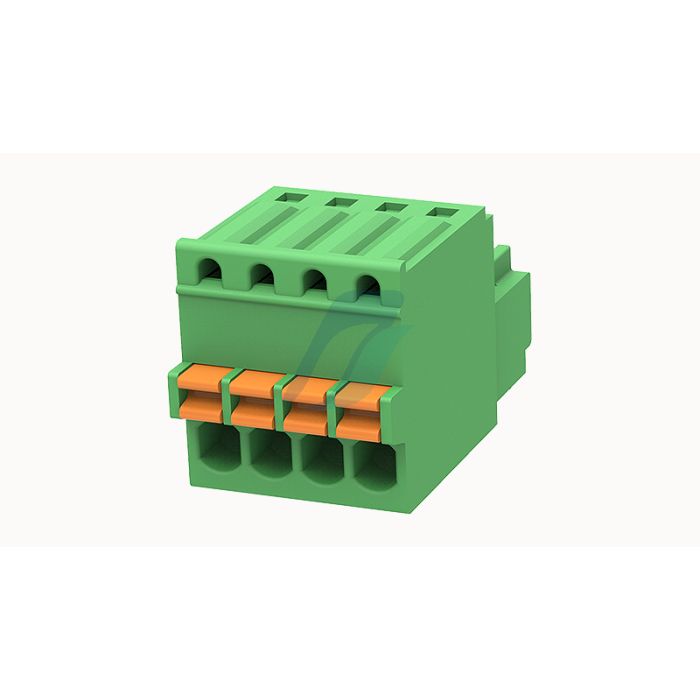

Degson 15EDGKD-2.5-04 Pluggable Terminal Blocks 4 Pin PCB Plug
₹25.70
For 1 Pc(s)
- 15EDGKD-2.5-04P-14-00A(H)
- 85366990
- Pc(s)
- Degson
- 4
- Female
- Yes
- GST 18%
- China
Product Specification
