- Conductor cross section solid : 0.5~1.5mm²
- Conductor cross section flexible : 0.5~1.5mm²
- AWG : 28~16AWG
- Torque : 0.2N.m
- Strip length : 7mm
- Rated voltage (B) : 300V
- Rated voltage (D) : 300V
- Rated current (B) : 8A
- Rated current (D) : 8A
- Rated current : 250V/7A
- Rated current(II/2) : 250V
- Rated surge voltage(II/2) : 2.5KV
- Connection method : Screw connection
- Screwdriver : Slotted screwdriver
- screw thread : M2
- Pitch : 3.5mm
2293 Pc(s) In Stock
SKU
15EDGKB-3.5-04P-14-100A(H)

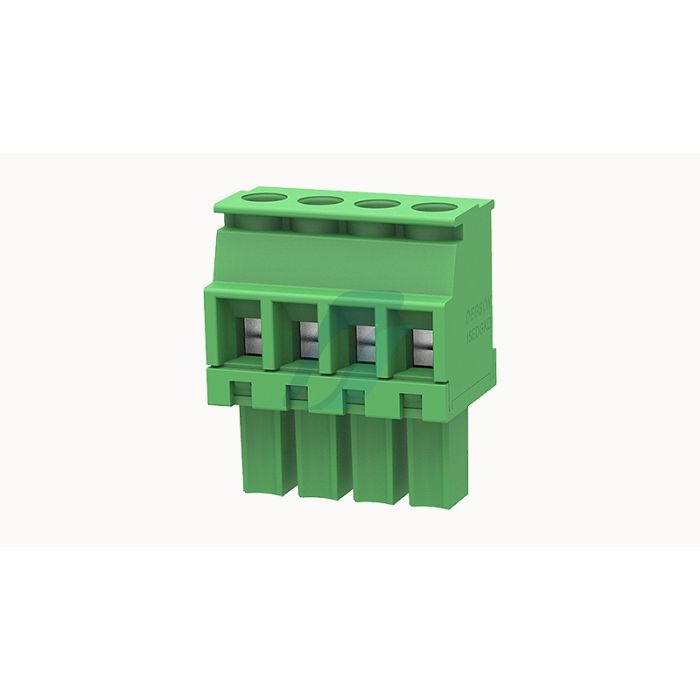

Degson 15EDGKB-3.5-04 Pluggable Terminal Blocks 4 Pin PCB Plug
₹25.60
For 1 Pc(s)
- 15EDGKB-3.5-04P-14-100A(H)
- 85366990
- Pc(s)
- Degson
- 4
- Female
- Yes
- GST 18%
- China
Product Specification
