995 Pc(s) In Stock
SKU
15EDGK-3.5-05P-14-00A(H)

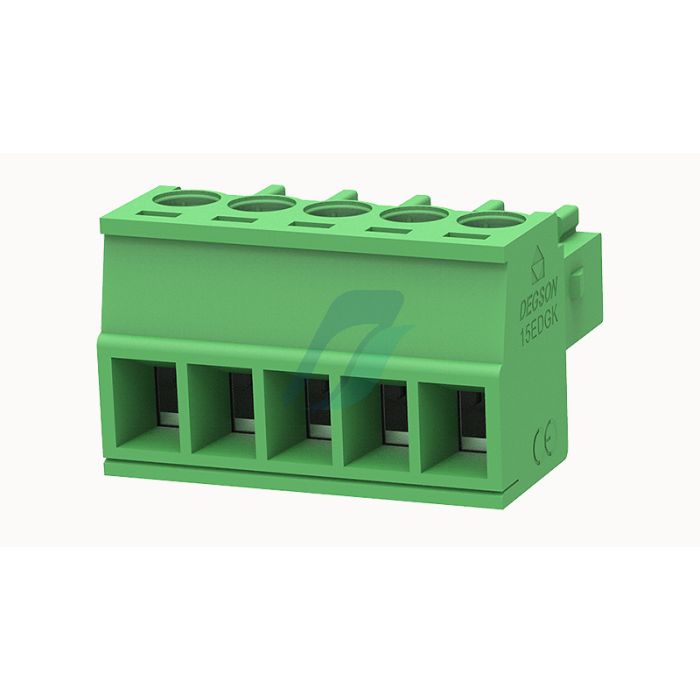

Degson 15EDGK-3.5-05 Pluggable Terminal Blocks 5 Pin PCB Plug

₹21.50 For 1 Pc(s)
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • 15EDGK-3.5-05P-14-00A(H)
  • 85366990
  • Pc(s)
  • Degson
  • 5
  • Female
  • No
  • GST 18%
  • China
Product Specification
  • Conductor cross section solid : 0.5~1.5mm²
  • Conductor cross section flexible : 0.5~1.5mm²
  • AWG : 28~16 AWG
  • Torque : 0.2N.m
  • Strip length : 7mm
  • Rated voltage (B) : 300V
  • Rated voltage (D) : 300V
  • Rated current (B) : 8A
  • Rated current (D) : 8A
  • Rated current : 250V 7A
  • Rated current(II/2) : 250V
  • Rated surge voltage(II/2) : 2.5KV
  • Connection method : Screw connection
  • Screwdriver : Slotted screwdriver
  • screw thread : M2
  • Number of rows : 1
