main product photo
Email
20 Pc(s) In Stock
SKU
YU-USB2-JSX-04-001

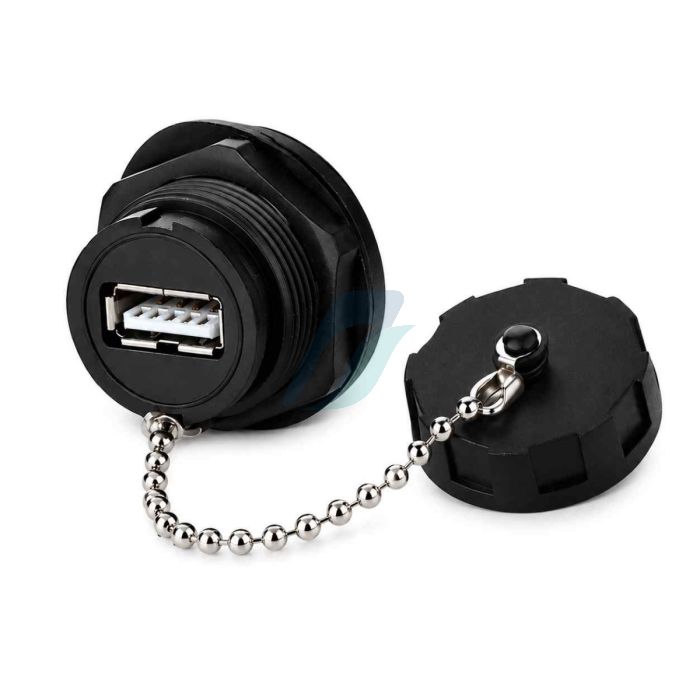

Cnlinko YU-USB USB 2.0 Female-Female Coupler IP67 With Cap

₹240.00
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • YU-USB2-JSX-04-001
  • 85366990
  • CNLINKO
  • Pc(s)
  • 1
  • Yes
  • Female
  • Panel Type
  • GST 18%
  • China
Product Specification
  • Current Rated: 2A (Max)
  • Operating Voltage: 100V/AC
  • Withstand Voltage: 100V AC
  • Insulation Resistance: >10MΩ
  • Life Cycle: ≥500 Times
  • Wire Size: (28~24) AWG
  • Cable O.D Range: Φ4.5~Φ5.5 mm
  • Assembly Style: Snap Lock (Swan Type)
  • Protection Level: Standard IP65, Optional IP67 & IP68
  • Temperature Rise: 2A Per Contact at 30K
  • Temperature Rating: -40°C ~ +85°C
  • Shell & Insulated Parts: PBT
Product Details
  • Industrial Waterproof USB 2.0 Connector:
    Specially designed USB 2.0 waterproof connector suitable for demanding industrial and outdoor application environments.
  • Secure Buckle Locking System:
    Features a jacket buckle locking mechanism for safer, more reliable, and stable connections.
  • IP67 Protection Rating:
    Provides high-level waterproof and dustproof protection, making it suitable for damp and harsh environments.
  • Enhanced Cable Protection:
    Plug and receptacle include cable sheath protection to reduce cable bending stress and improve service life.
  • Flexible Installation Options:
    Supports both panel mounting and wire-to-wire installation methods for fixed and mobile applications.
