- Current Rated: 5A
- Rated Voltage: 125V AC
- Withstand Voltage: 1500V AC
- Contact Resistance (Max): 5.0 mΩ
- Insulation Resistance (Min): 500 MΩ
- Contact Diameter: Ø1.0 × 3
- Life Cycle: ≥ 500 times
- Wire Specification: 0.75 – 0.5 mm² / 18–20 AWG
- Cable Outer Diameter: Ø4.5 – Ø5.5 mm
- Assembly Style: Soldering
- Protection Level: IP65 (Standard), IP67 & IP68 (Optional)
- Temperature Rise (Max): 30K
- Operating Temperature: -25°C to +85°C
- Shell / Insulated Parts: PBT
- Hardware Metal: Zinc Alloy
- Contact Material: Brass (Gold-plated)
10 Pc(s) In Stock
SKU
LP-12-J03SX-02-101

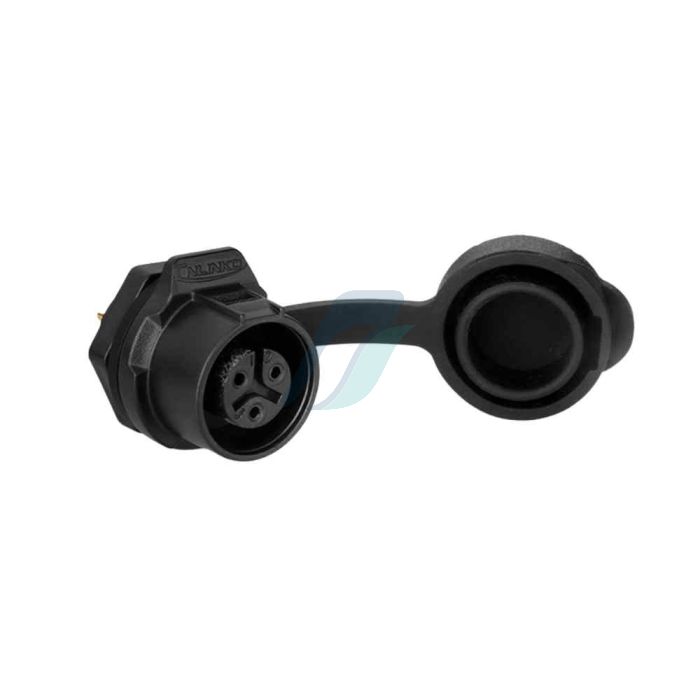

Cnlinko LP12 125V 5A 3 Pin Female Panel IP67 Waterproof Power Connector Plastic Shell Solder Terminal
₹148.00
- LP-12-J03SX-02-101
- 85366990
- CNLINKO
- Pc(s)
- 1
- Yes
- 3
- Female
- Panel Type
- GST 18%
- China
Product Specification
Product Details
- Multiple Structure Options:
Available in full plastic, full metal, and semi-metal designs to meet different requirements such as anti-interference, high strength, and corrosion resistance. - Compact & Durable Design:
Small, lightweight, and robust construction suitable for modern equipment requiring miniaturized connectors. - Quick Locking Mechanism:
One-click button locking system enables plug-and-play functionality for fast and convenient operation. - Enhanced Waterproof Protection:
Multi-layer waterproof design ensures high sealing performance and prevents intrusion of water and liquids.
