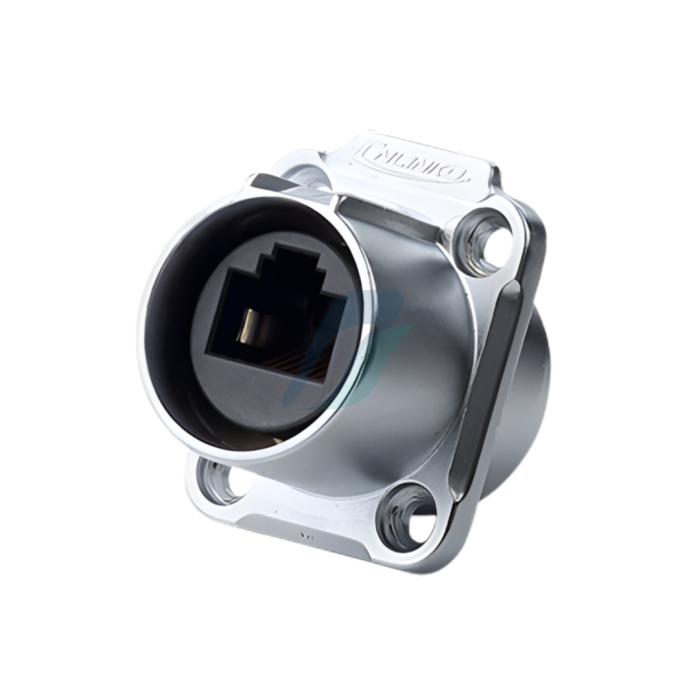

RJ45 Female Socket IP67 Waterproof Ethernet Connector

₹410.00

Product Overview

SKU LP-24-J-RJ45
HSN Code 85366990
Manufacturer CNLINKO
UOM Pc(s)
Packet Quantity 1
ROHS Compliance Yes
Gender Male
Tax GST 18%
Country of Origin China

Product Specification

Operating voltage: 42V
Working temperature: -25~85C, 85% RH Max
Insulation Resistance: 500Mohm
Contact Resistance: 40mohm
Protection Level: IP67
Durability: 750 cycles
Insertion force: 22.25N Max
Withstanding Voltage: 1000V
Rated current: 1.2A
Modular Interface: RJ45
Gender: Female

Product Details

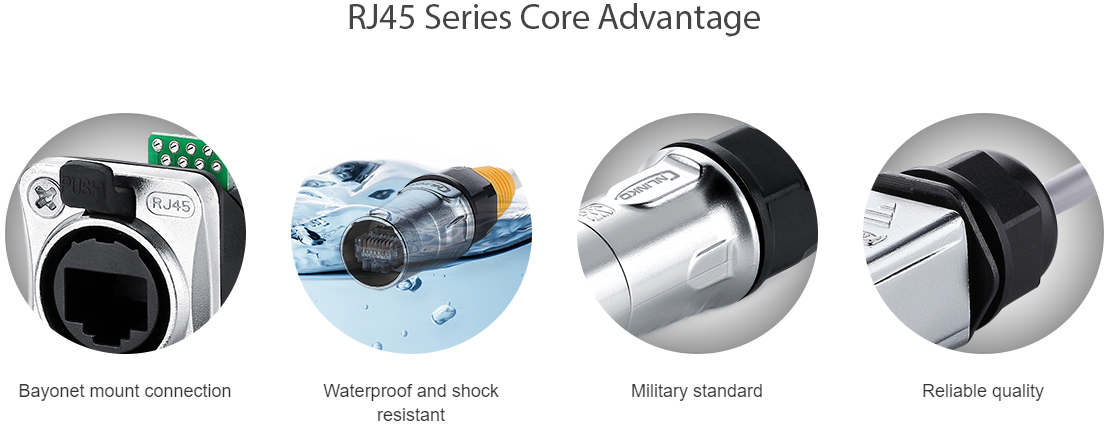

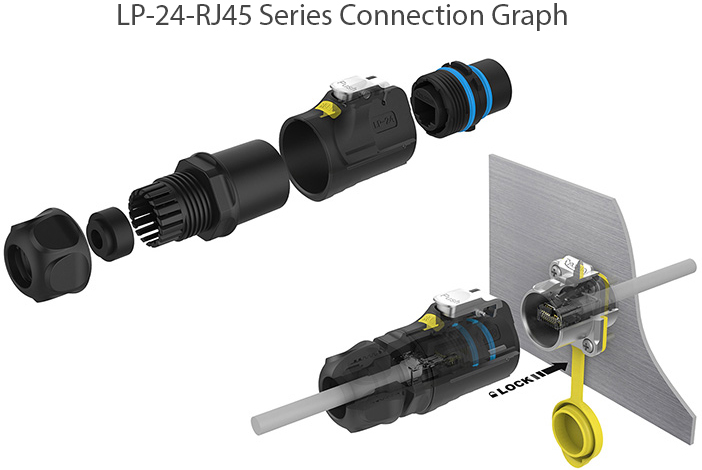

The RJ45 series connectors have multi-style connecting modes like 1/4 bayonet connect and quick plug-unplug applicable for harsh environments. Cable jacket with solid die-casted shell and unique dual-clip-clip wire saddle and sheath of cable applicable for common RJ45 plugs with electroplated shell against wind and rain. These connectors have a shielding system with high-frequency noise immunity and electromagnetic interference protection and protection level IP65 waterproof and dustproof. Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801, RJ45 connectors compatible CAT5e, data transfer rate reach 10GBit/s.
