- Current Rated: 20A
- Rated Voltage: 500V AC
- Withstand Voltage: 2000V AC
- Contact Resistance Max: 1.0mΩ
- Insulation Resistance Min: 500MΩ
- Contact Diameter: Φ2.7 × 2
- Life Cycle: Minimum 500 times
- Wire Specification Max: 2.5mm² / 12AWG
- Cable O.D Range: Φ10.0 ~ Φ12.0mm
- Assembly Style: Soldering
- Protection Level: Standard IP65 / Optional IP67 & IP68
- Temperature Rise Max: 30K
- Operating Temperature: -40°C ~ +85°C
- Shell & Insulated Parts: Zinc Alloy / PBT
- Hardware Metal: Zinc Alloy
- Contact Size: Brass with Gold-Plated
20 Pc(s) In Stock
SKU
LP-20-C02PE-03-001A

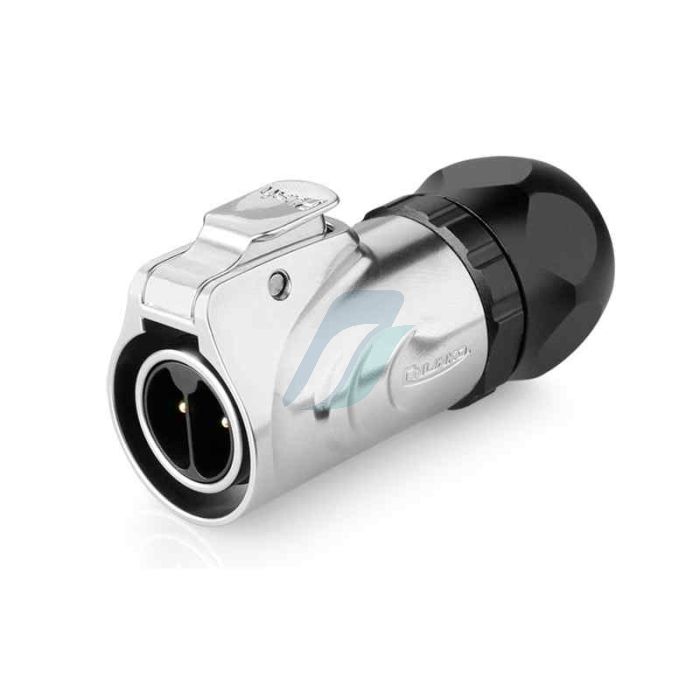

Cnlinko LP-20 IP68 2 Pin Waterproof Metal Cable Male
₹769.00
- LP-20-C02PE-03-001A
- 85366990
- Pc(s)
- 1
- Yes
- 2
- Male
- Cable Type
- GST 18%
- China
Product Specification
Product Details
- Multiple Housing Options:
Available in full-plastic, full-metal, and semi-metallic designs to meet various industrial requirements including anti-interference protection, high strength, and corrosion resistance. - Quick Push-Lock Connection:
Features a one-key press locking mechanism for secure plug-and-play operation with fast and convenient installation. - High Waterproof Performance:
Precision waterproof construction provides excellent sealing performance, suitable for wet and demanding outdoor environments. - Durable Structural Design:
Built using high-strength materials with a pressure-resistant structure capable of withstanding vibration, impact, and mechanical shock.
