- Current Rated: 1.5A
- Rated Voltage: 125V AC
- Transmission Rate: CAT.3 ~ CAT.6A
- Contact Resistance Max: 30mΩ
- Insulation Resistance Min: 500MΩ
- Contact Diameter: 8
- Operating Cycles Min: 500 times
- Wire Gauge Max: 0.08 ~ 0.13mm² (28 ~ 26AWG)
- Cable OD: Φ7.0 ~ Φ9.0mm
- IP Code: IP67
- Temperature Rise Max: 30K
- Operating Temperature: -40°C ~ +85°C
- Shell & Insulated Parts: Zinc Alloy / PBT
- Hardware Metal: Zinc Alloy
- Contact Member: Copper Alloy with Gold Platingv
- Sealing Strip: Rubber
18 Pc(s) In Stock
SKU
LP-16-C/RJ45/015/PE-43-001

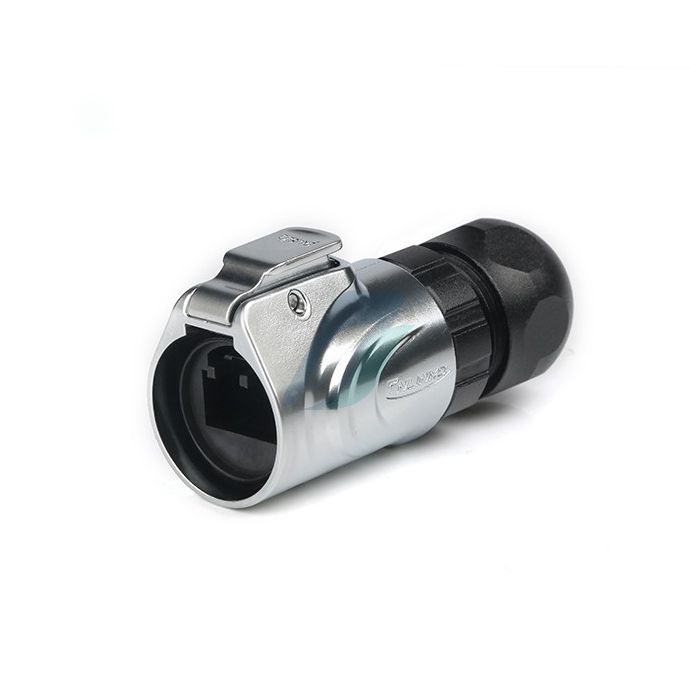

Cnlinko LP 16 LP16 RJ45 Waterproof Ethernet Connector Male
₹524.00
- LP-16-C/RJ45/015/PE-43-001
- 85366990
- CNLINKO
- Pc(s)
- 1
- Yes
- Male
- Cable Type
- GST 18%
- China
Product Specification
Product Details
- Multiple Housing Configurations:
Available in full-plastic, full-metal, and semi-metallic versions to satisfy diverse industrial requirements including anti-interference performance, high mechanical strength, and corrosion resistance. - Quick Push-Lock Connection:
Designed with a one-key press locking mechanism for secure plug-and-play installation, ensuring fast and convenient connectivity. - Advanced Waterproof Protection:
Precision waterproof structure provides reliable sealing performance, making it suitable for wet, outdoor, and demanding industrial environments. - High-Strength Structural Design:
Constructed using durable materials with a pressure-resistant design to withstand vibration, impact, and mechanical shock.
