- Current Rated: 3A
- Rated Voltage: 100V AC
- Withstand Voltage: 1000V AC
- Contact Resistance (Max): 5.0 mΩ
- Insulation Resistance (Min): 500 MΩ
- Contact Diameter: Ø0.8 × 8
- Life Cycle: ≥ 500 times
- Wire Specification: 0.3 – 0.2 mm² / 22-24 AWG
- Cable Outer Diameter: Ø4.5 – Ø5.5 mm
- Assembly Style: Soldering
- Protection Level: IP65 (Standard), IP67 & IP68 (Optional)
- Temperature Rise (Max): 30K
- Operating Temperature: -25°C to +85°C
- Shell / Insulated Parts: PBT
- Hardware Metal: Zinc Alloy
- Contact Material: Brass (Gold-plated)
20 Pc(s) In Stock
SKU
LP-12-J08PP-02-001

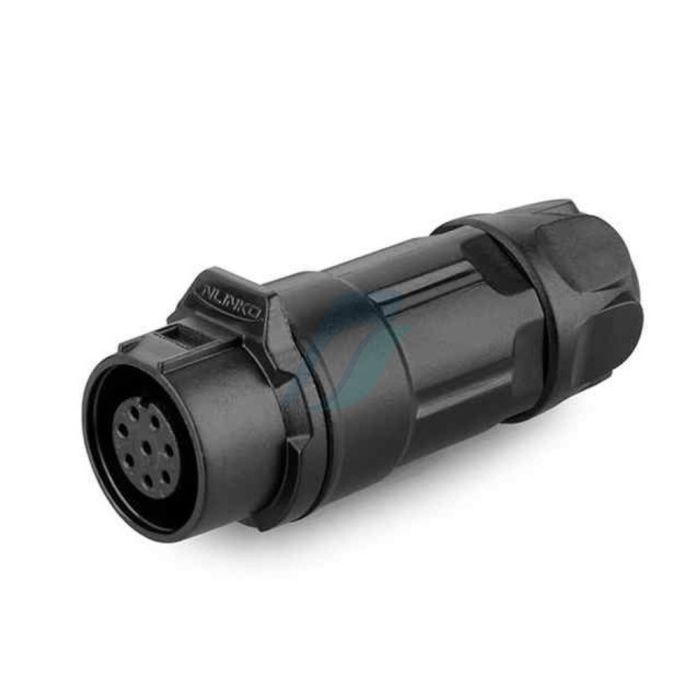

Cnlinko LP12 125V 5A 8 Pin Female IP67 Waterproof Power Connector Plastic Shell Solder Terminal
₹255.00
- LP-12-J08PP-02-001
- 85366990
- CNLINKO
- Pc(s)
- 1
- Yes
- 8
- Female
- GST 18%
- China
Product Specification
Product Details
- Multiple Structure Options:
Available in full plastic, full metal, and semi-metal designs to meet different requirements such as anti-interference, high strength, and corrosion resistance. - Compact & Durable Design:
Small, lightweight, and robust construction suitable for modern equipment requiring miniaturized connectors. - Quick Locking Mechanism:
One-click button locking system enables plug-and-play functionality for fast and convenient operation. - Enhanced Waterproof Protection:
Multi-layer waterproof design ensures high sealing performance and prevents intrusion of water and liquids.
