- Current Rated: 900 mA
- Operating Voltage: 5V AC
- Transmission Rate: 5.0 Gb/s
- Life Cycle: ≥ 500 times
- Wire Size: 28 AWG
- Cable Outer Diameter Range: Ø5.0 – Ø7.0 mm
- Assembly Style: Straight Through
- Protection Level: IP65 (Standard), IP67 & IP68 (Optional)
- Temperature Rise: ≤ 30K at 900 mA (per contact)
- Operating Temperature: -40°C to +85°C
- Shell / Insulated Parts: PBT
- Hardware Metal: Zinc Alloy
- Contact Material: Brass (Gold-plated)
- Sealing Material: Silicone / Rubber
20 Pc(s) In Stock
SKU
BD-24-J/USB3/213/SX-43-207A

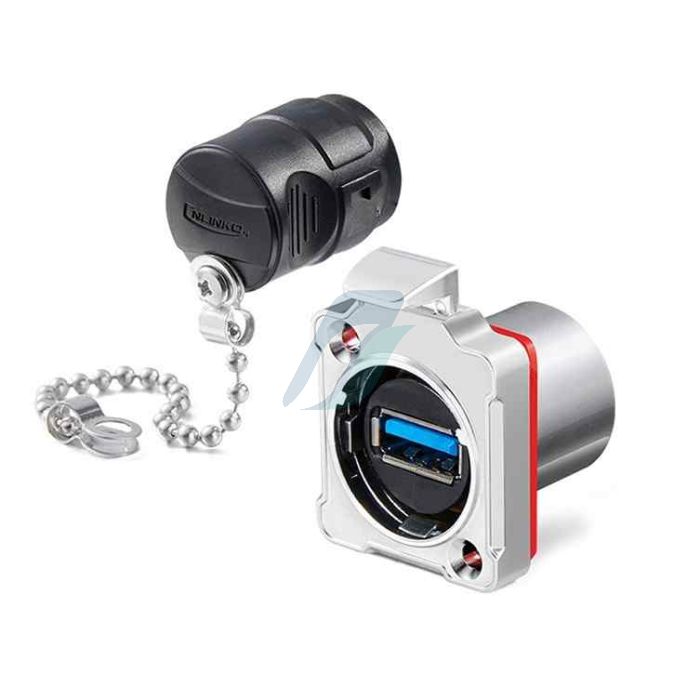

Cnlinko BD-24 USB 3.0 Industrial Circular Waterproof Socket Data Connector
₹748.00
- BD-24-J/USB3/213/SX-43-207A
- 85366990
- CNLINKO
- Pc(s)
- 1
- Yes
- Socket
- Panel Type
- GST 18%
- China
Product Specification
Product Details
- Multiple Structure Options:
Available in all-plastic and all-metal designs to meet different requirements such as anti-interference, high strength, and corrosion resistance in various applications. - Quick Locking Mechanism:
One-key push button locking system enables plug-and-play functionality, ensuring fast and convenient operation. - High Waterproof Performance:
Precision waterproof design provides a high protection level, suitable for use in wet and harsh environments. - Robust Structural Design:
Built with high-strength materials and pressure-resistant structure, capable of withstanding vibration and mechanical shock.
