- Switching voltage: 12 VAC/DC max.
- Switching current: 10 mA AC/DC max.
- Dielectric strength: 500 V / 50Hz
- Durability: > 50 million actuations
- Contact configuration: Single-pole contact 1 Actuator travel: 4.0 -0.4 mm
- Pretravel: 2 ± 0.6 mm
- Initial force: 30 cN min.
- Actuation force: 60 ± 20 cN
- Bounce time: < 5 ms (during actuation with 0,4 m/s)
- Standard lead spacing: 19.05 mm (16 mm min.)
- Insulation materials: Thermoplastics (min. UL 94 HB)
- Spring: Stainless steel
- Contacts: High-quality gold alloy
- Operating Temperature: -40°C to 70°C
- Humidity: Storage: average <50% max. 3 months / 75% max. 15 days, operation: 5% to 95% without condensation
999 Pc(s) In Stock
SKU
MX1A-11NN

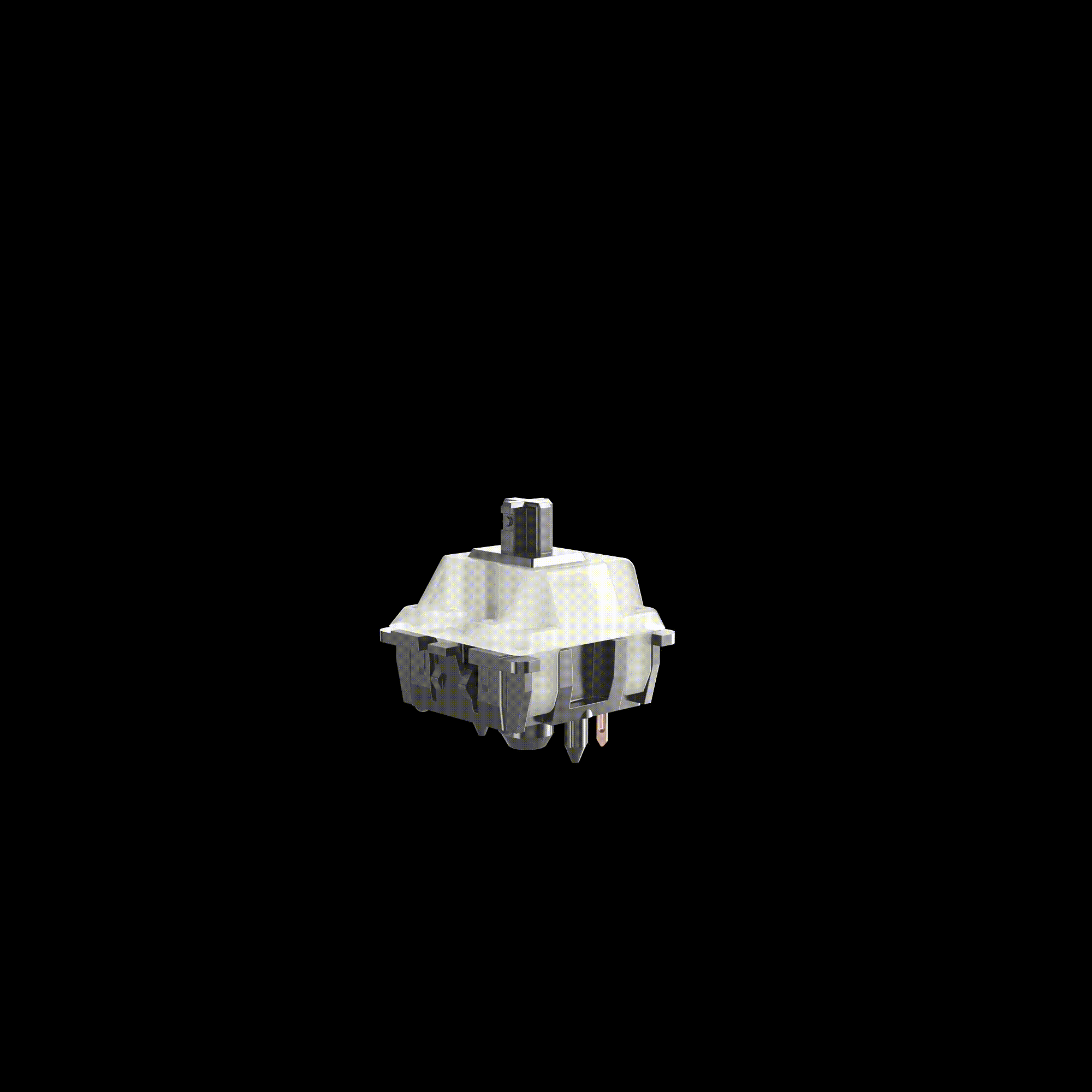

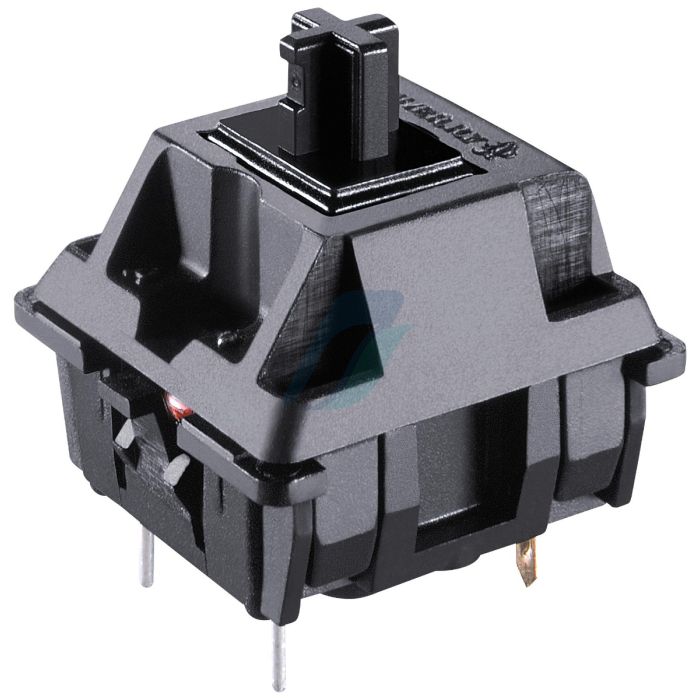

Cherry Keyswitch Standard force linear face plate mount
₹15.00
- MX1A-11NN
- 85365090
- Cherry
- PCB Straight
- Pc(s)
- 1.588
- Yes
- GST 18%
- Germany
Product Specification
Product Details
 |
|
