- Conductor Count : 2 Pair
- Conductor Size : 20 AWG (American Wire Gauge)
- Insulation : PE
- Insulation colour : 1. White/Blue & Blue/White 2. White/Orange & Orange/White
- Shielding : Aluminum Foil Tn Cu Braid Shield
- Outer Jacket : PVC Polyvinyl Chloride
- Temperature Range : -20° To + 80°C
- Max. voltage rating : 300 V RMS
- Flame Retardant : IEC 60332-1-2
- Armoring : SWA (Galvanized Steel Wire Armor)
- Nom. Overall Diameter (mm) : 12.6 mm
Out of stock
SKU
YJ72682.0101500M

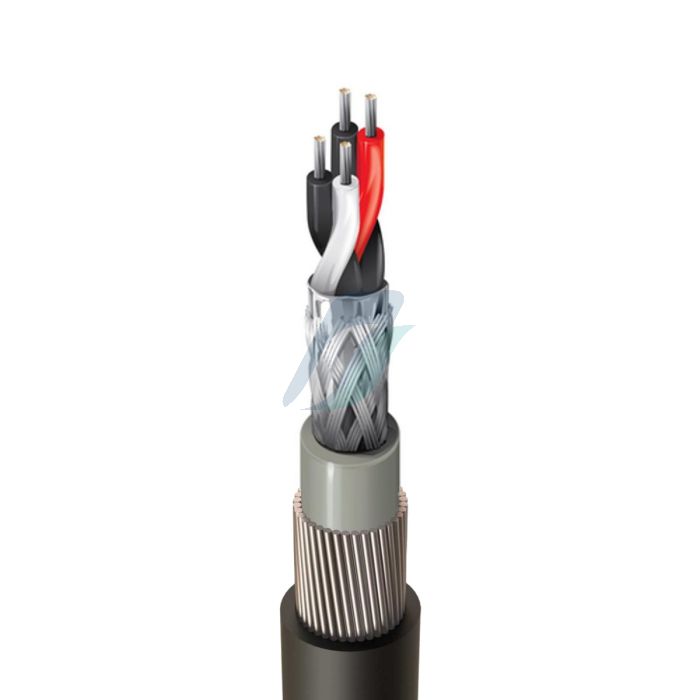

Belden 2 Pair 0.5 mm2 PE/OS/OBS/PVC/SWA/PVC Armored RS‐485 Cable
₹56,000.00
For 1 Roll
- YJ72682.0101500M
- 85444999
- 500 Mtr(s)
- Belden
- Roll
- Yes
- GST 18%
- India
Product Specification
Datasheet
