- Conductor Count : 1 Pair
- Conductor Size : 22 AWG (American Wire Gauge)
- Stranding : 7 x 30
- Conductor Material : Bare Copper
- Insulation colour : Red & Green
- Insulation Material : FMPE
- Overall Shield-Drain Wire Material : Overall foil Shield +Tinned Copper braid
- Nom. Overall Diameter (mm) : 7.8
- Temperature Rating (°C) : ‐20°C To +70°C
- Nom. Impedance (3MHz ~ 20MHz) : 150 ± 20%
- Max. Conductor Resistance @ 20°C (O/km): 58.7
- Voltage Rating (V): 300
1 Roll In Stock
SKU
YJ72257.007500M-1

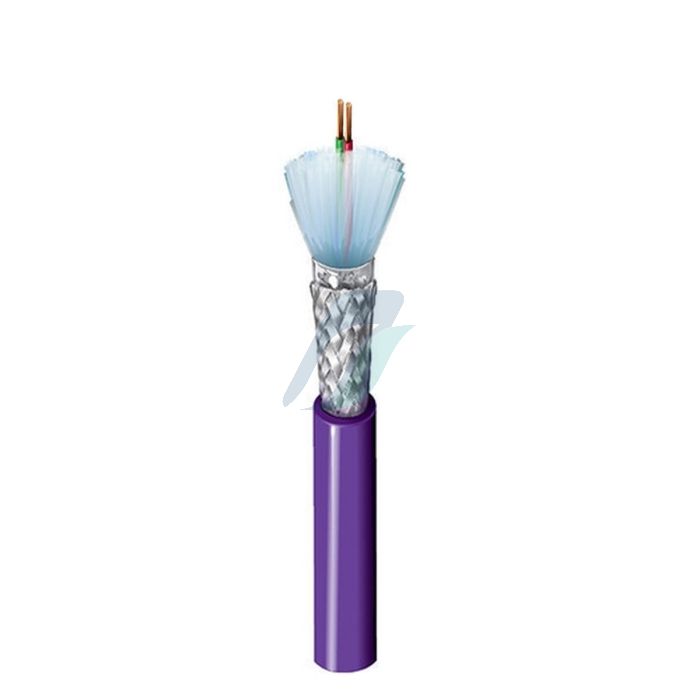

Belden 1Px22AWG FMPE/OBS/PVC Profibus DP cable
₹17,750.00
For 1 Roll
- YJ72257.007500M-1
- 854449999
- 250 Mtr(s)
- Belden
- Roll
- Yes
- GST 18%
- China
Product Specification
