2 Roll In Stock
SKU
YJ57083.0071000M

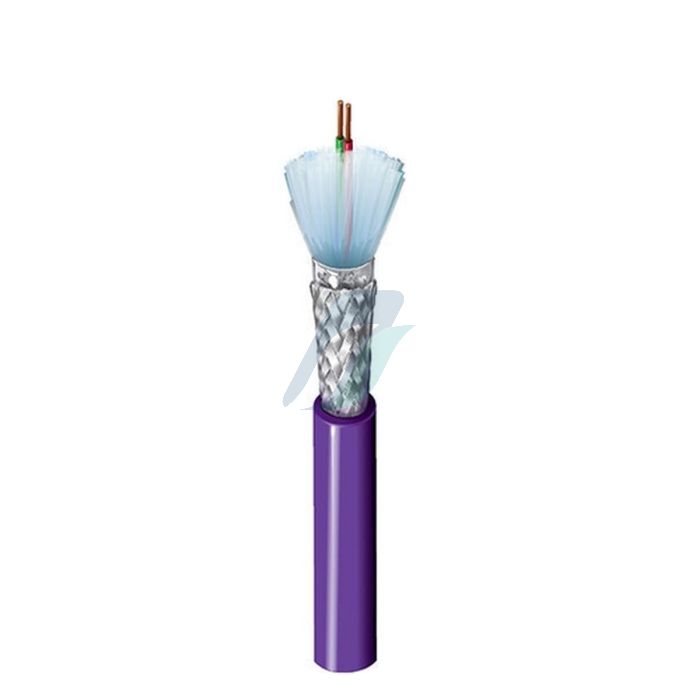

Belden 1 PR #22 FRFPE FRPE SH PVC Profibus DP cable

₹55,000.00 For 1 Roll
( Price exclusive of GST )
Request For Higher Quantity Quotation
  • YJ57083.0071000M
  • 85444999
  • 1000 Mtr(s)
  • Belden
  • Roll
  • No
  • GST 18%
  • India
Product Specification
  • Conductor Count : 1 Pair
  • Conductor Size : 22 AWG (American Wire Gauge)
  • Stranding: Solid
  • Insulation : FHDPE
  • Insulation colour : Red & Green
  • Shielding : Aluminum Foil-Polyester Tape
  • Outer Jacket : PVC - Polyvinyl Chloride
  • Temperature Rating : - 20℃ To + 70℃
  • Flame Test : IEC 60332-1
  • Nom. Conductor DC Resistance @ 20°C : 16 Ω/kft
  • Nom. Capacitance Conductor to Conductor : 8.5 pF/ft
  • Nom. Velocity of Propagation : 78 %
  • Max. Operating Voltage : 300 V
Datasheet
