Belden ControlBus™, Coax RG6, #18 Sol BCCS, PO Ins, QUAD AL Shld, PVC Jkt, AIA Armor, PVC Jkt, CM

₹127,490.00 For 1 Roll

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

SKU 123092A.0101000
HSN Code 85444999
Reel Length 305 Mtr(s)
Manufacturer Belden
UOM Roll
ROHS Compliance No
Tax GST 18%
Country of Origin United States

Product Details

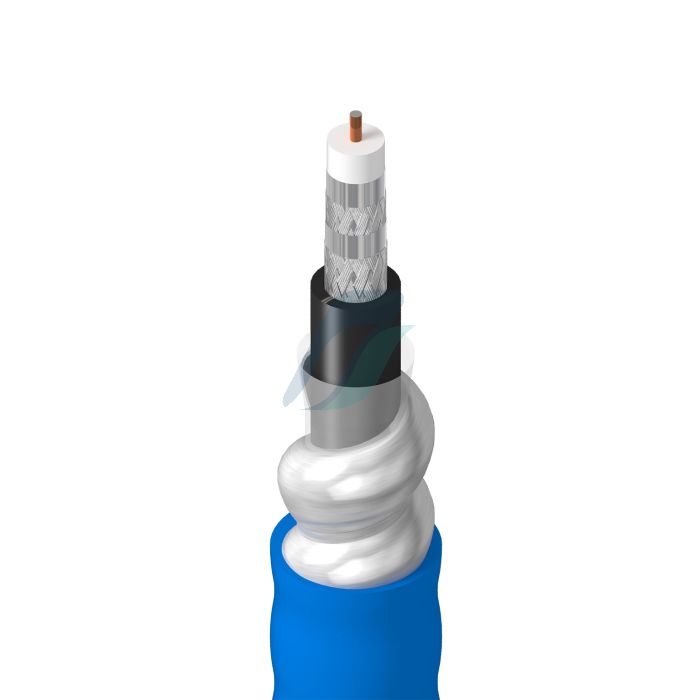

ControlBus™, Coax RG6 18AWG (Solid) Bare Copper Covered Steel, PO Insulation, Overall Duofoil®+ Aluminum Braid(60%)+Overall Duofoil®+Aluminum Braid(40%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket

Product Specification

Coax Construction : Coaxial
Coax Type : Rg 6
Conductor Material : Copper Clad Steel
Conductor Type : Solid Conductor
Dielectric Material : FPE-FOAMED (CELLULAR) POLYETHYLENE
Fire Rating : General Purpose (CM, CMG, CMX)
Flooded : Not Flooded Over Braid
Jacket Material : PVC-Polyvinyl Chloride, PVC-1
Outdoor : Yes Outdoor Material
Screen/Shield Type : Quad Shield (F/B+F/B)
UNSPSC Code : 26121606

Datasheet

Belden-123092A.pdf
