- Orientation : Vertical
- Termination Style : PCB Solder
- Pin Pattern : Signal
- Current Rating : 5A per contact
- Voltage Rating : 300V rms at 50 Hz
- Resistance (Contact) < 10mΩ
- Operating Temperature Range : -55°C to +125°C
- Durability (Mating cycles) Std Class (>200 Mating Cycles)
- Plating Shell : Tin Body
- Plating Contact area : Gold over Nickel
- EU RoHS : Compliant
190 Pc(s) In Stock
SKU
DB25S364TILF

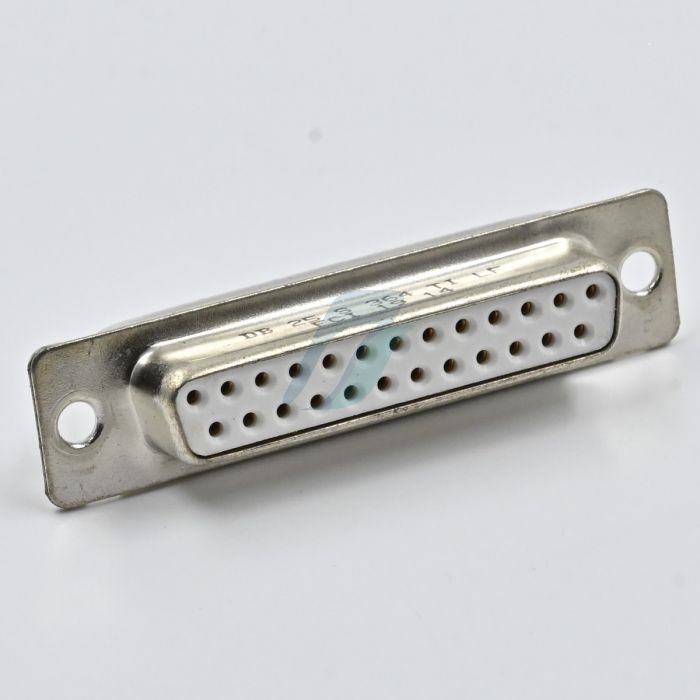

Amphenol FCI 25 Pin D-Sub Female PCB Straight
₹68.40
Other Available Option
- DB25S364TILF
- 85369090
- Pc(s)
- Amphenol FCI
- 25
- PCB Straight
- Female
- No
- GST 18%
- India
Product Specification
