- Number of positions : 50
- Number of rows loaded : A+B
- Color - Housing : Grey
- Orientation : Vertical
- Termination Style : Through hole
- Material Housing : High Temperature Thermoplastic ,UL94 V-0
- Resistance (Insulation) : 5000MΩ at 100v
- Resistance (Contact) : ≤20 mΩ
- Tail Length : 4.35
- Current Rating : 1.5A at 20°C
- Operating Temperature Range : -55°C to +125°C
- Plating Contact area : Au over Ni to meet DIN 41651 Class 3
- Tail Plating : 2.00μm (78.740μin) Tin over Ni
- Voltage Rating : 300v
Out of stock
SKU
86130501014345E1LF

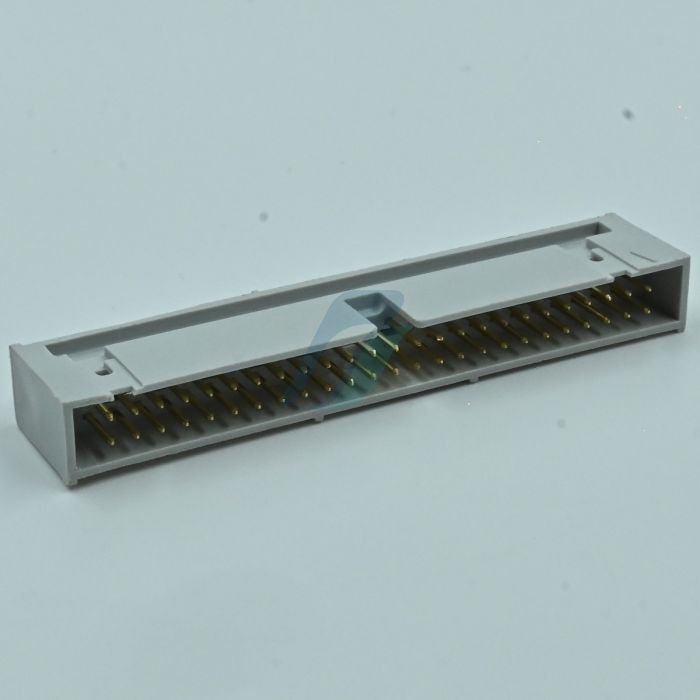

Amphenol FCI 50 Pin Box Header Straight
₹28.20
For 1 Pc(s)
- 86130501014345E1LF
- 85369090
- Pc(s)
- Amphenol FCI
- 50
- PCB Straight
- Male
- Yes
- GST 18%
- India
Product Specification
