- Number of position : 50
- Number of rows loaded : A+B
- Color-Housing : Grey
- Orientation : Right Angle
- Termination Style : Through Hole
- Material Housing : High Temperature Thermoplastic, UL94V-0
- Resistance (Insulation) : 5000MΩ at 100v
- Resistance (Contact) : ≤20 mΩ
- Tail Length : 4.65mm (0.183in)
- Current Rating : 1.5A at 20°C
- Operating Temperature Range : -55°C to +125°C
- Plating contact area : Au over Ni to meet DIN 41651 Class 3
- Tail Plating : 2.00μm (78.740μin) Tin over Ni
- Voltage Rating :300v
138 Pc(s) In Stock
SKU
86130501013345E1LF

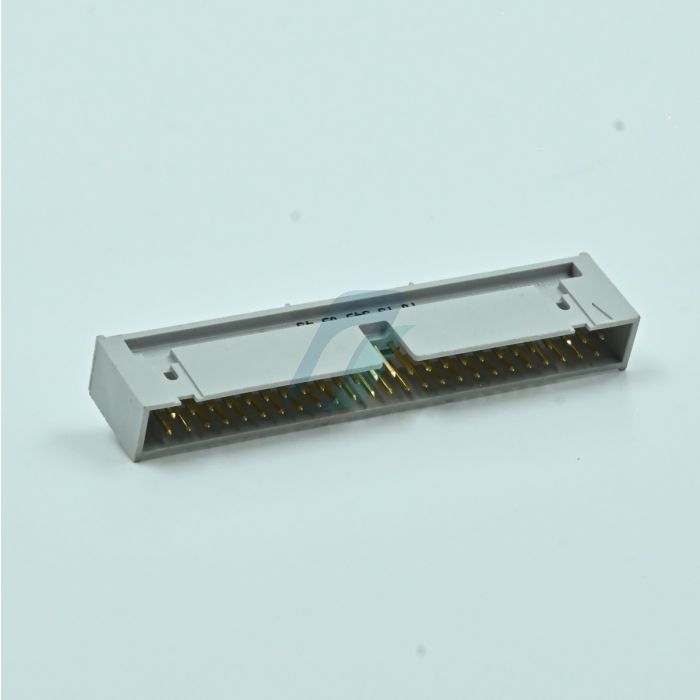

Amphenol FCI 50 Pin Box Header Right Angle
₹22.60
For 1 Pc(s)
- 86130501013345E1LF
- 85369090
- Pc(s)
- Amphenol FCI
- 50
- PCB Right Angle
- Male
- Yes
- GST 18%
- India
Product Specification
