- Number of positions: 14
- Number of rows loaded: A+B
- Color - Housing: Grey
- Orientation: Right angle
- Termination Style: Through hole
- Material Housing: High Temperature Thermoplastic ,UL94 V-0
- Resistance (Insulation): 5000MΩ at 100v
- Resistance (Contact): ≤20 mΩ
- Tail Length:4.2
- Current Rating: 1.5A at 20°C
- Operating Temperature Range:- 55°C to +125°C
- Plating Contact area: Au over Ni to meet DIN 41651 Class 3
- Tail Plating:2.00μm (78.740μin) Tin over Ni
- Voltage Rating:300v
Out of stock
SKU
86130141013345E1LF

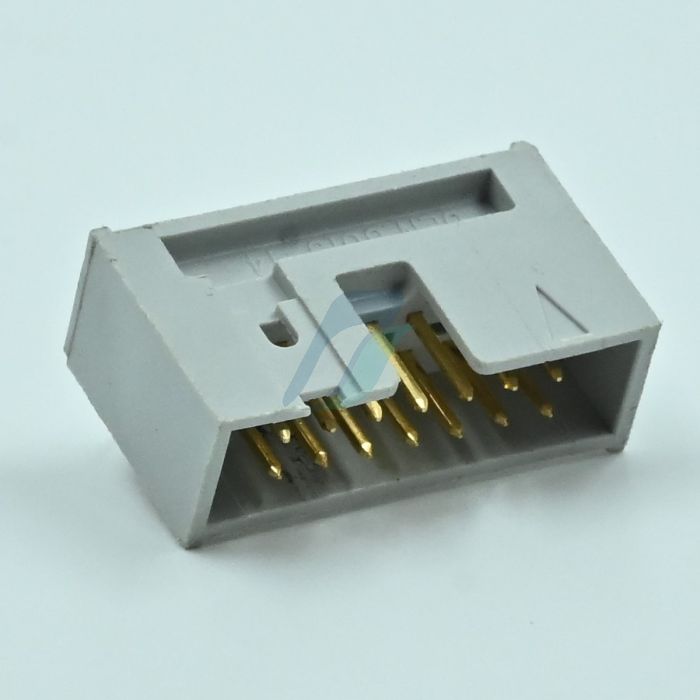

Amphenol FCI 14 Pin Box Header Right Angle
₹12.10
For 1 Pc(s)
- 86130141013345E1LF
- 85369090
- Pc(s)
- Amphenol FCI
- 14
- PCB Right Angle
- Male
- Yes
- GST 18%
- India
Product Specification
