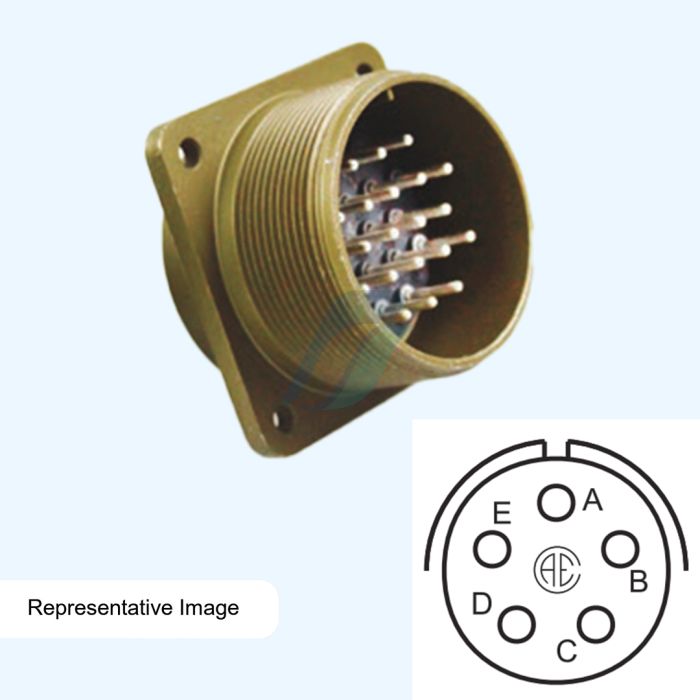

Allied 5 Pin Panel Box Mounting Receptacle Male Connector

₹237.00

Product Overview

SKU MS 3102R-14S-5P
HSN Code 85369090
Manufacturer Allied Connectors
UOM Pc(s)
ROHS Compliance No
Contacts 5
Gender Male
Mounting Method Box Mounting
Tax GST 18%
Country of Origin India

Product Specification

Mate with : MS 3106 and MS 3108 styles.
P : Male
Plating : Olive Drab Cadmium
Insulator : Polychloroprene
Contact Material : Copper Base Alloy - Silver Plated
Mating Cycle : 500
Operating Temperature : - 55 °C / + 125 °C
Insulation Resistance : Min. 5000 Meg Ohms at 500VDC
Current Rating : Up to 150 Amps. (Depends on Contact Arrangement)
Working Voltage : 200 to 3000 VAC rms (Depends on Contact Arrangement)
Wire Termination : Solder Type
Shell Housing : Aluminium Alloy

Product Details

MS 3102R is a panel (box) mounted connector with the following features: 1) Square flange with external threading and with 4 mounting holes. 2) Available with male (pins) or female (sockets) contacts. 3) Will mate with MS 3106 and MS 3108 styles. 4) All are with solder contacts. 5) Supplied with a sealing gasket.
