- Mate with : MS 3106 and MS 3108 styles.
- P : Male
- Plating : Olive Drab Cadmium
- Insulator : Polychloroprene
- Contact Material : Copper Base Alloy - Silver Plated
- Mating Cycle : 500
- Operating Temperature : - 55 °C / + 125 °C
- Insulation Resistance : Min. 5000 Meg Ohms at 500VDC
- Current Rating : Up to 150 Amps. (Depends on Contact Arrangement)
- Working Voltage : 200 to 3000 VAC rms (Depends on Contact Arrangement)
- Wire Termination : Solder Type
- Shell Housing : Aluminium Alloy
Out of stock
SKU
MS 3102R-14S-2P

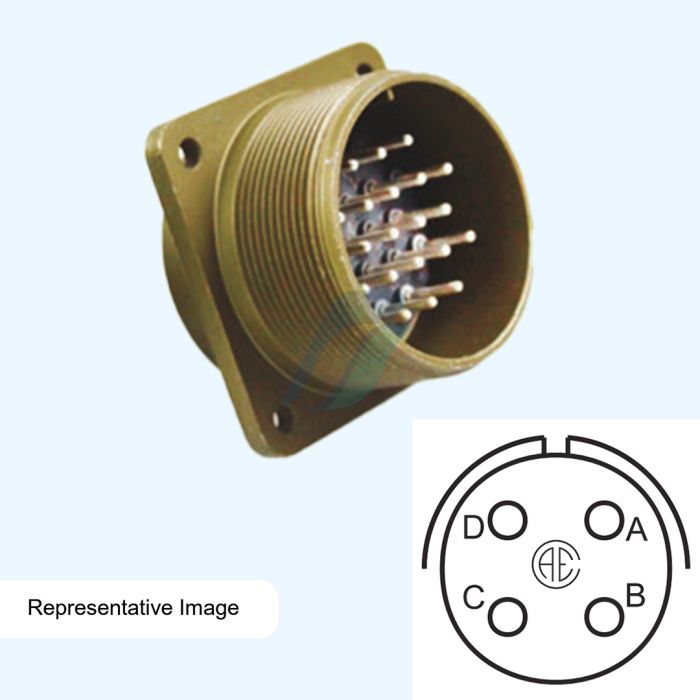

Allied 4 Pin Panel Box Mounting Receptacle Male Connector
₹219.00
- MS 3102R-14S-2P
- 85369090
- Allied Connectors
- Pc(s)
- No
- 4
- Male
- Box Mounting
- GST 18%
- India
Product Specification
Product Details
MS 3102R is a panel (box) mounted connector with the following features:
1) Square flange with external threading and with 4 mounting holes.
2) Available with male (pins) or female (sockets) contacts.
3) Will mate with MS 3106 and MS 3108 styles.
4) All are with solder contacts.
5) Supplied with a sealing gasket.
