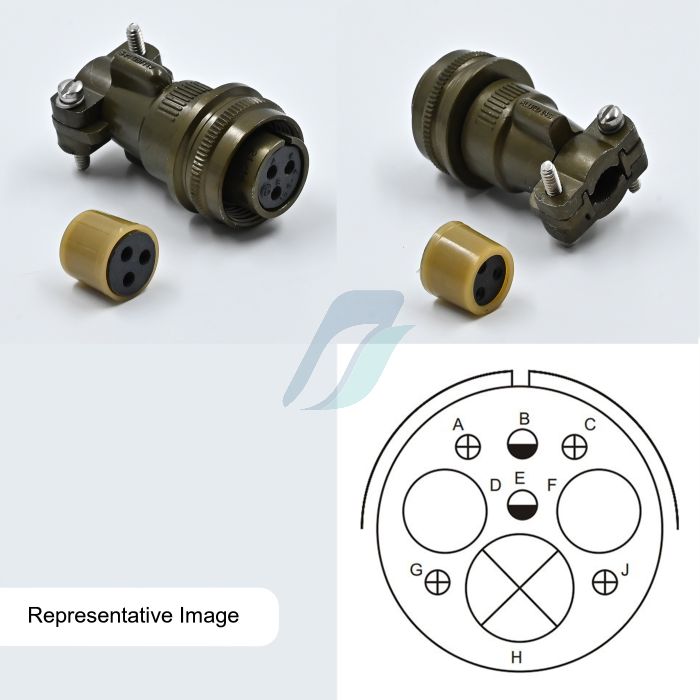

Allied 9 Pin Cable Straight Circular Threaded Coupling Female Connector

₹1,973.00

Other Available Option

Contacts

Product Specification

Mate with : 3100,3101 & 3102 styles
MS : Military Standard
3106 : Cable straight
F : Environment Resistance With cable clamp & "O” ring for 3106 & 3108 cable connector
32 : Consist of Shell Size
S : Female
Wire Size (Min) : 0.80,1.60,4 & 6.3 Sq
Wire Size (Max) : 1.25, 2 , 5 & 8 Sq
Maximum Test Current : 4 Pin 22 Amp, 2 Pin 41 Amp ,2 Pin 135 Amp & 1 Pin 245 Amp
Rated Current : 4 Pin 13 Amp, 2 Pin 23 Amp ,2 Pin 80 Amp & 1 Pin 150 Amp
Test Voltage :2800V
Shell Housing Material : Aluminium Alloy
Plating : Olive Drab Cadmium
Contact Material : Copper Base Alloy -Silver Plated
WireTermination Method : Solder type
Operating Temperature : -55C/+125C

Product Details

MS 3106F straight cable connector mate with 3100, 3101 and 3102 style
MS 3106F is identical to MS 3106E except for 'O' ring under the coupling net, thus effecting a seal
