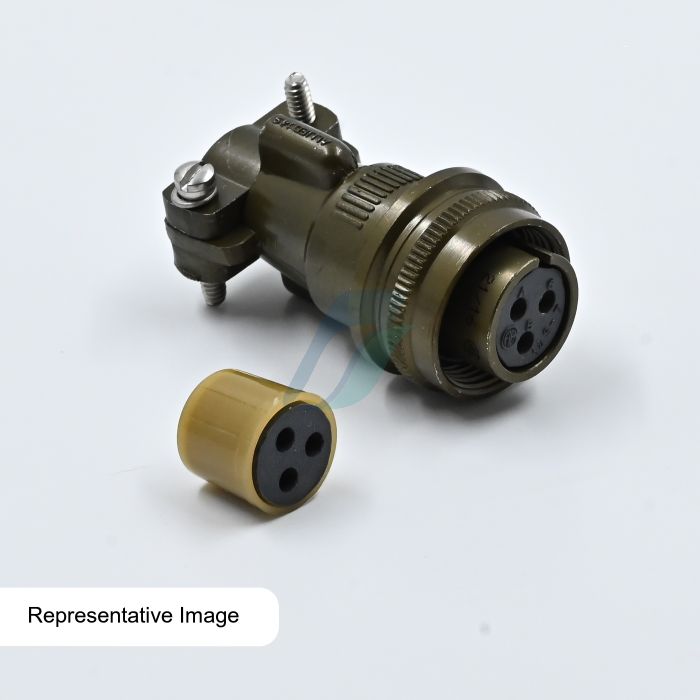

main product photo
Email
Out of stock
SKU
3106F-28-10S

Allied 7 Pin Cable Straight Circular Threaded Coupling Female Connector

₹1,254.00
Notify Me
Other Available Option
  • 3106F-28-10S
  • 85369090
  • Allied Connectors
  • No
  • 7
  • Female
  • Cable Type
  • GST 18%
  • India
Product Specification
  • Mate with : 3100,3101 & 3102 styles
  • MS : Military Standard
  • 3106 : Cable straight
  • F : Environment Resistance With cable clamp & "O” ring for 3106 & 3108 cable connector
  • 28 : Consist of Shell Size
  • S : Female
  • Wire Size (Min) : 1.60 , 2.50 & 4 Sq
  • Wire Size (Max) : 2 , 3.15 & 5 Sq
  • Maximum Test Current : 3 Pin 41 Amp ,2 Pin 73 Amp & 2 Pin 135 Amp
  • Rated Current : 3 Pin 23 Amp ,2 Pin 46 Amp & 2 Pin 80 Amp
  • Test Voltage :2800V
  • Shell Housing Material : Aluminium Alloy
  • Plating : Olive Drab Cadmium
  • Contact Material : Copper Base Alloy -Silver Plated
  • WireTermination Method : Solder type
  • Operating Temperature : -55C/+125C
Product Details
  • MS 3106F straight cable connector mate with 3100, 3101 and 3102 style
  • MS 3106F is identical to MS 3106E except for 'O' ring under the coupling net, thus effecting a seal
