- Mate with : 3100,3101 & 3102 styles
- MS : Military Standard
- 3106 : Cable straight
- F : Environment Resistance With cable clamp & "O” ring for 3106 & 3108 cable connector
- 24 : Consist of Shell Size
- S : Female
- Wire Size (Min) : 2.50 Sq & 0.80 Sq
- Wire Size (Max) : 3.15 Sq & 1 Sq
- Maximum Test Current : 1 Pin 73 Amp & 9 pin 22 Amp
- Rated Current : 1 Pin 46 Amp & 9 Pin 13 Amp
- Test Voltage :2800V
- Shell Housing Material : Aluminium Alloy
- Plating : Olive Drab Cadmium
- Contact Material : Copper Base Alloy -Silver Plated
- WireTermination Method : Solder type
- Operating Temperature : -55C/+125C
Out of stock
SKU
3106F-24-21S

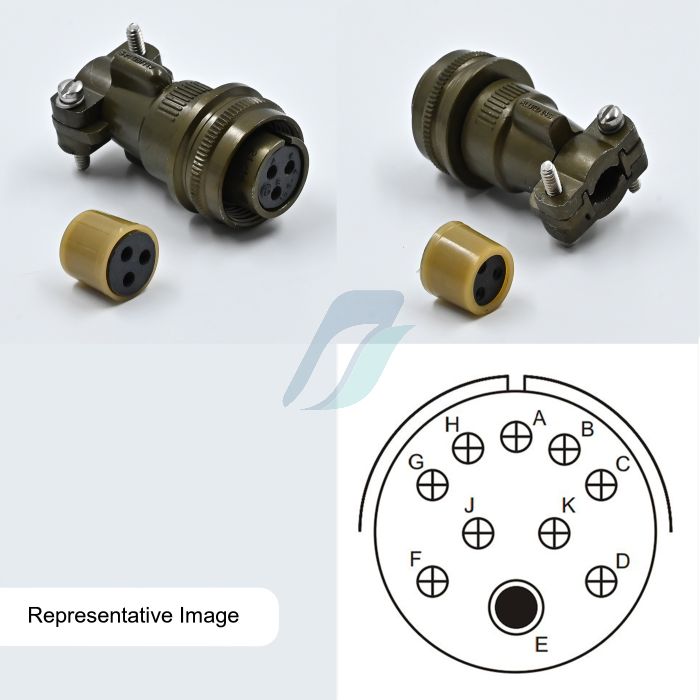

Allied 10 Pin Cable Straight Circular Threaded Coupling Female Connector
₹1,316.00
Other Available Option
- 3106F-24-21S
- 85369090
- Allied Connectors
- No
- 10
- Female
- Cable Type
- GST 18%
- India
Product Specification
Product Details
- MS 3106F straight cable connector mate with 3100, 3101 and 3102 style
- MS 3106F is identical to MS 3106E except for 'O' ring under the coupling net, thus effecting a seal
