- Mate with : 3100,3101 & 3102 styles
- MS : Military Standard
- 3106 : Cable straight
- F : Environment Resistance With cable clamp & "O” ring for 3106 & 3108 cable connector
- 10SL : Consist of Shell Size
- P : Male
- Wire Size (Min) : 0.80 Sq
- Wire Size (Max) : 1.25 Sq
- Maximum Test Current : 22 AMP
- Rated Current : 13 AMP
- Test Voltage : 2000V
- Shell Housing Material : Aluminium Alloy
- Plating : Olive Drab Cadmium
- Contact Material : Copper Base Alloy -Silver Plated
- WireTermination Method : Solder type
- Operating Temperature : -55C/+125C
15 In Stock
SKU
3106F-10SL-4P

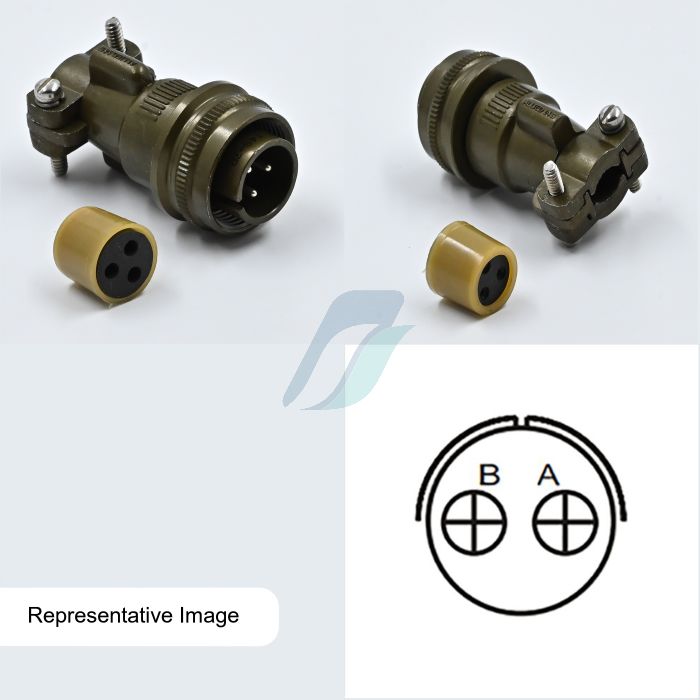

Allied 2 Pin Cable Straight Circular Threaded Coupling Male Connector
₹174.00
Other Available Option
- 3106F-10SL-4P
- 85369090
- Allied Connectors
- No
- 2
- Male
- Cable Type
- GST 18%
- India
Product Details
- MS 3106F straight cable connector mate with 3100, 3101 and 3102 style
- MS 3106F is identical to MS 3106E except for 'O' ring under the coupling net, thus effecting a seal
Product Specification
