57 In Stock
SKU
3106F-10SL-3S

Allied 3 Pin Cable Straight Circular Threaded Coupling Female Connector

₹180.00
( Price exclusive of GST )
Request For Higher Quantity Quotation

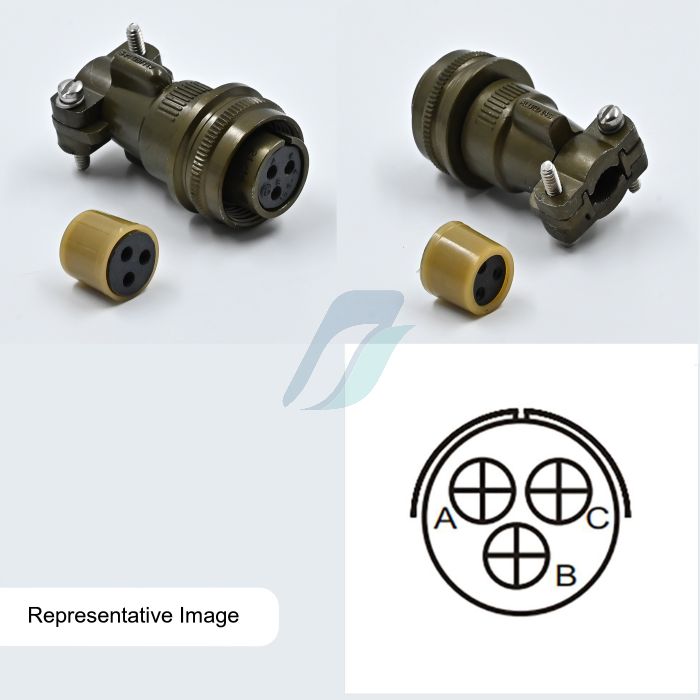

main product photo
Email
Other Available Option
  • 3106F-10SL-3S
  • 85369090
  • Allied Connectors
  • No
  • 3
  • Female
  • Cable Type
  • GST 18%
  • India
Product Details
  • MS 3106F straight cable connector mate with 3100, 3101 and 3102 style
  • MS 3106F is identical to MS 3106E except for 'O' ring under the coupling net, thus effecting a seal
Product Specification
  • Mate with : 3100,3101 & 3102 styles
  • MS : Military Standard
  • 3106 : Cable straight
  • F : Environment Resistance With cable clamp & "O” ring for 3106 & 3108 cable connector
  • 10SL : Consist of Shell Size
  • S : Female
  • Wire Size (Min) : 0.80 Sq
  • Wire Size (Max) : 1.25 Sq
  • Maximum Test Current : 22 AMP
  • Rated Current : 13 AMP
  • Test Voltage : 2000V
  • Shell Housing Material : Aluminium Alloy
  • Plating : Olive Drab Cadmium
  • Contact Material : Copper Base Alloy -Silver Plated
  • WireTermination Method : Solder type
  • Operating Temperature : -55C/+125C
